ATESR-10-RY-B

Active

Menics

COMPLETE UNIT RED/YL FLSH 2STACK

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT RED/YL FLSH 2STACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATESR-10-RY-B	ATESR-10 Series

Features	Selector Control	Selector Control, Adjustable Volume
Function - Audible	Continuous	Continuous
Function - Lighting	Steady, Flashing	Steady, Flashing
Light Color	Red, Yellow	Red, Green, Yellow, Blue, Clear
Number of Stacks	2	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector
Type	Complete Unit	Complete Unit
Voltage - Supply	110 VAC/DC	110 VAC/DC

COMPLETE UNIT GR/R FLASH 2STACK

Part	Features	Termination Style	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Function - Audible	Number of Stacks	Type	Function - Lighting	Light Color
Menics ATESR-10-RG-B	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Continuous	2	Complete Unit	Flashing, Steady	Green, Red
Menics ATESR-10-RY-B	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Continuous	2	Complete Unit	Flashing, Steady	Red, Yellow
Menics ATESR-10-RYGB-Z	Adjustable Volume, Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Continuous	4	Complete Unit	Flashing, Steady	Blue, Green, Red, Yellow
Menics ATESR-10-RG	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C		2	Complete Unit	Flashing, Steady	Green, Red
Menics ATESR-10-RY-Z	Adjustable Volume, Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Continuous	2	Complete Unit	Flashing, Steady	Red, Yellow
Menics ATESR-10-RYGB	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C		4	Complete Unit	Flashing, Steady	Blue, Green, Red, Yellow
Menics ATESR-10-RY	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C		2	Complete Unit	Flashing, Steady	Red, Yellow
Menics ATESR-10-G	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C		1	Complete Unit	Steady	Green
Menics ATESR-10-RYG-Z	Adjustable Volume, Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Continuous	3	Complete Unit	Flashing, Steady	Green, Red, Yellow
Menics ATESR-10-R	Selector Control	Cable with Connector	110 VAC/DC	-15 °C	40 °C		1	Complete Unit	Flashing	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 222.00

General part information

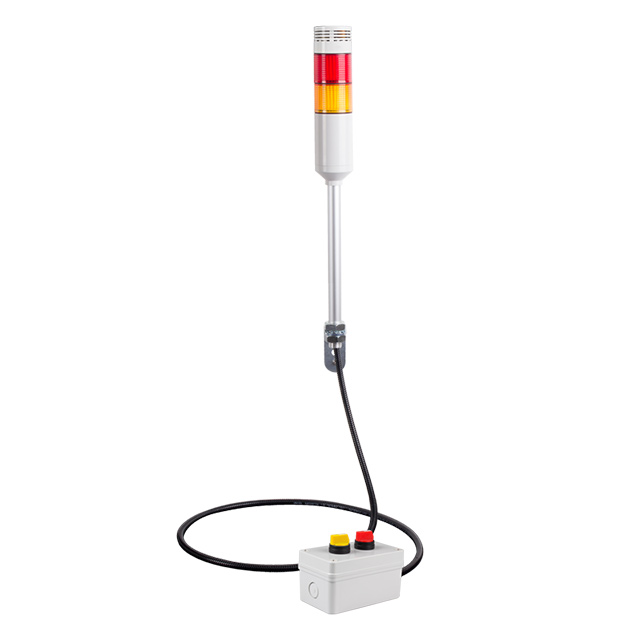

Stack Light Complete Unit Red, Yellow LED Selector Control Cable with Connector

Technical documentation and resources
