ZUSAVSQ70109
ActiveUSA Industrials

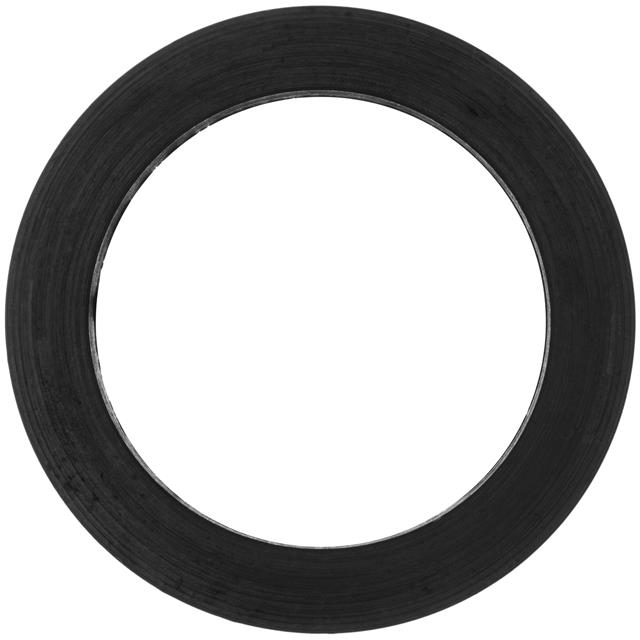

FKM SQUARE RING 75A -109 PK25
ZUSAVSQ70109
ActiveUSA Industrials
FKM SQUARE RING 75A -109 PK25
Description
General part information
ZUSAVSQ70109
FKM SQUARE RING 75A -109 PK25
Technical Specifications
Parameters and characteristics for this part
| Specification | ZUSAVSQ70109 |
|---|---|
| Color | Black |
| Cross Section | 0.09375 in |
| Cross Section Shape | Square |
| Dash Number (Numeric) | -109 |
| Diameter - Inside (Maximum) | 0.3125 in |
| Diameter - Inside (Nominal) | 0.299 in |
| Diameter - Outside | 0.505 in |
| Diameter - Outside (Nominal) | 0.5 in |
| Hardness (Shore A) | 75 |
| Material | FKM |
| Nominal I.D. | 0.3125 in |
| Operating Temperature (Max) | 204 °C |
| Operating Temperature (Min) | -26 °C |
| Width | 0.103 in |
