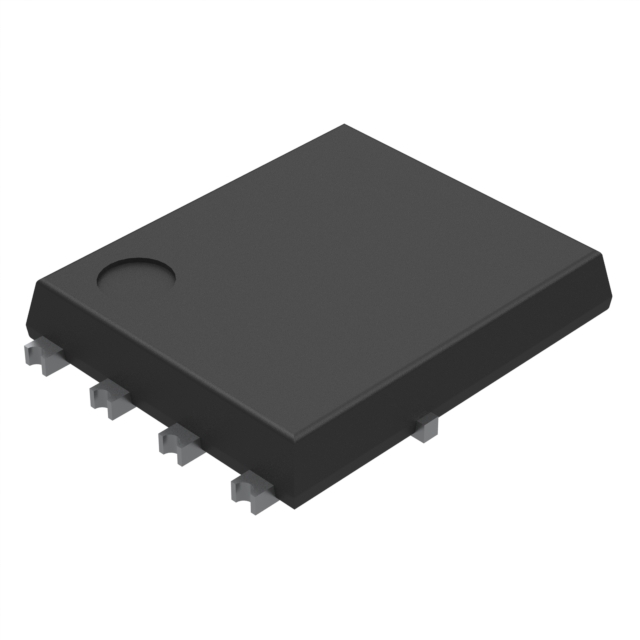

DMC1018UPDWQ-13
ActiveDiodes Inc
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Search across all available documentation for this part.
DMC1018UPDWQ-13
ActiveDiodes Inc
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMC1018UPDWQ-13 |
|---|---|
| Configuration | N and P-Channel Complementary |
| Current - Continuous Drain (Id) @ 25°C | 31.3 A, 6.7 A, 10 A, 20.9 A |
| Drain to Source Voltage (Vdss) | 20 V, 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC |
| Gate Charge (Qg) (Max) @ Vgs | 30.4 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 1525 pF, 866 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power - Max | 2.6 W, 25 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 38 mOhm, 17 mOhm |
| Supplier Device Package | PowerDI5060-8 (Type UXD) |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.57 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.57 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.28 | |||
| Tape & Reel (TR) | 2500 | $ 0.25 | ||
| 5000 | $ 0.24 | |||
| 12500 | $ 0.22 | |||
Description
General part information
DMC1018UPDWQ Series
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: motor control, power-management functions, and DC-DC converter.
