0830409
ActivePhoenix Contact
WIRE MARKR CBL TIE 15MMX55MM WHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0830409
ActivePhoenix Contact
WIRE MARKR CBL TIE 15MMX55MM WHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0830409 | WMTB HF Series |
|---|---|---|
| Color | White | White, Yellow |
| Legend | Blank | Blank |
| Material | Polyurethane (PUR) | Polyurethane (PUR) |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Size [x] | 2.17 " | 0.98 - 2.17 " |
| Size [x] | 55 mm | 25 - 55 mm |
| Size [y] | 15 mm | 10 - 55 mm |
| Size [y] | 0.59 in | 0.39 - 2.17 " |
| Type | Wire Marker, Cable Tie | Wire Marker, Cable Tie |
WMTB HF Series
WIRE MARKR CBL TIE 10MMX40MM WHT
| Part | Legend | Color | Size [x] | Size [y] | Size [x] | Size [y] | Operating Temperature [Min] | Operating Temperature [Max] | Material | Type |
|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0830407 | Blank | White | 1.57 " | 0.39 " | 40 mm | 10 mm | -25 °C | 80 C | Polyurethane (PUR) | Wire Marker, Cable Tie |
Phoenix Contact 0830408 | Blank | Yellow | 1.57 " | 0.39 " | 40 mm | 10 mm | -25 °C | 80 C | Polyurethane (PUR) | Wire Marker, Cable Tie |
Phoenix Contact 0830411 | Blank | White | 0.98 in | 2.17 in | 25 mm | 55 mm | -25 °C | 80 C | Polyurethane (PUR) | Wire Marker, Cable Tie |
Phoenix Contact 0830409 | Blank | White | 2.17 " | 0.59 in | 55 mm | 15 mm | -25 °C | 80 C | Polyurethane (PUR) | Wire Marker, Cable Tie |
Phoenix Contact 0830410 | Blank | Yellow | 2.17 " | 0.59 in | 55 mm | 15 mm | -25 °C | 80 C | Polyurethane (PUR) | Wire Marker, Cable Tie |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 776.92 | |
Description
General part information
WMTB HF Series

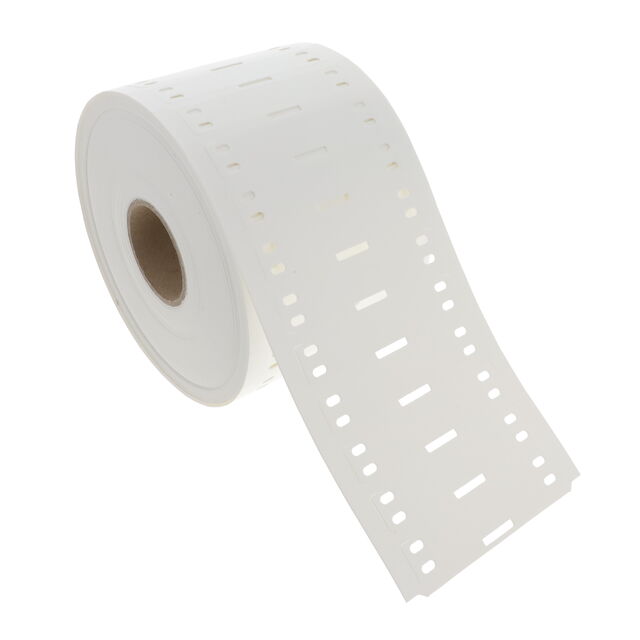

Wire Marker, Cable Tie 0.59" W x 2.17" L (15.0mm x 55.0mm) White Polyurethane (PUR)
