AVR-M1608G270KT6AB
ActiveTDK Corporation
AUTO. GRADE,MLV,430PF,19VDC,0805
AVR-M1608G270KT6AB
ActiveTDK Corporation
AUTO. GRADE,MLV,430PF,19VDC,0805
Description
General part information
AVR-M1608G270KT6AB

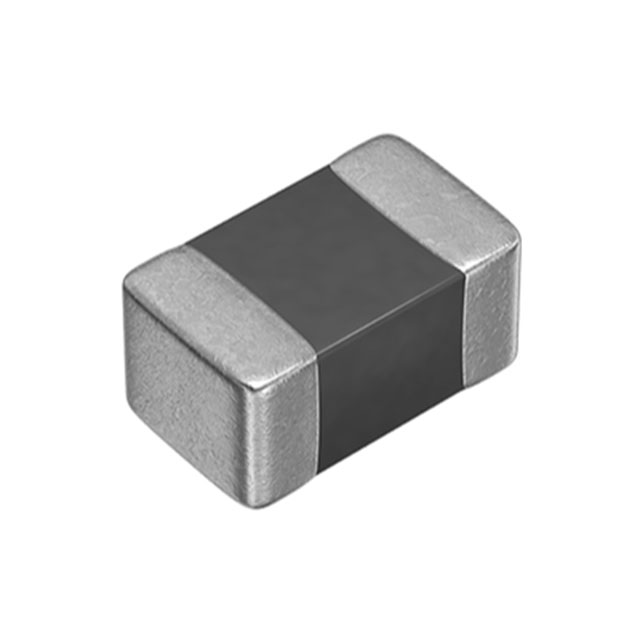

27 V 48 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AVR-M1608G270KT6AB |
|---|---|
| Capacitance | 430 pF |
| Current - Surge | 48 A |
| Energy | 0.1 J |
| Maximum DC Voltage | 19 V |
| Mounting Type | MLCV, Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Varistor Voltage (Max) | 30 V |
| Varistor Voltage (Min) | 24 V |
| Varistor Voltage (Typ) | 27 V |
