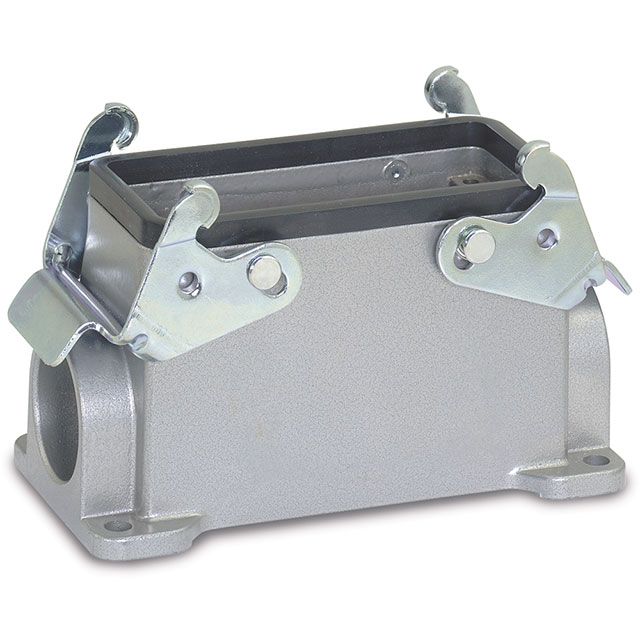

100740NP

Active

LAPP

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM ALLOY BODY, 2 LEVER, 16B

Search across all available documentation for this part.

Active

LAPP

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM ALLOY BODY, 2 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Specification	100740NP

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB16
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	2.52 "
Size / Dimension [z]	64 mm
Style	Side Entry
Thread Size	NPT-3/4

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM ALLOY BODY, 2 LEVER, 16B

Part	Housing Material	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Connector Type	Housing Color	Size	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Style
LAPP 100740NP	Aluminum Alloy	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Base - Box Mount	Gray	HB16	IP65 - Dust Tight, Water Resistant	2.52 "	4.606 "	57 mm	117 mm	2.244 "	64 mm	NPT-3/4	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry NPT-3/4 HB16 IP65 - Dust Tight, Water Resistant
