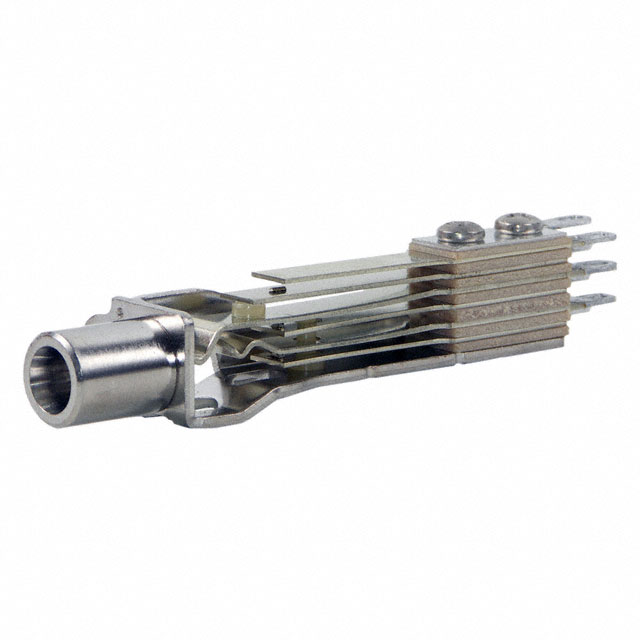

MT336CX

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MT336CX

Actual Diameter [diameter]	6.4 mm
Actual Diameter [diameter]	0.252 "
Body Color	Silver
Body Material	Steel
Connector Type	Phone Jack
Contact Material	Palladium (Pd)
Contact Material - Plating [custom]	Gold
Features	Grounding Tab
Gender	Female
Internal Switch(s)	Three Switches
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	7 Contacts
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

CONN JACK STEREO 6.35MM PNL MNT

Part	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Termination	Body Color	Connector Type	Contact Material	Signal Lines	Internal Switch(s)	Features	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Material	Shielding	Contact Material - Plating [custom]
Switchcraft Inc. MT336CX	3	7 Contacts	Female	Solder Eyelet(s)	Silver	Phone Jack	Palladium (Pd)	Stereo	Three Switches	Grounding Tab	6.4 mm	0.252 "	Steel	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
