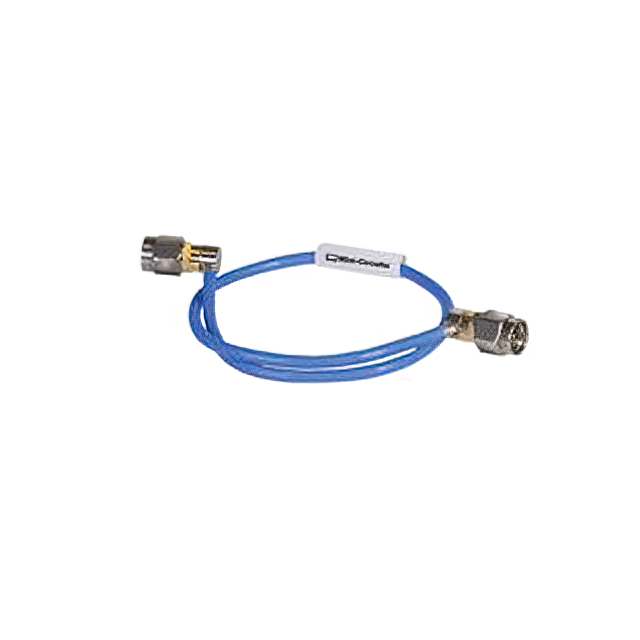

086-10SMR+

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 10"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 10"

Technical Specifications

Parameters and characteristics commom to parts in this series

RF CABLE ASSEMBLIES HFLEX BL CA SM/SM 10" ROHS

Part	Operating Temperature [Max]	Operating Temperature [Min]	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	1st Connector	Style	Color	Overall Impedance	Frequency - Max [Max]	Length	Length	Cable Type	Cable Type
MINI-CIRCUITS 086-10SM+	105 ░C	-55 °C	Male	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	SMA Plug	SMA Plug	SMA to SMA	Blue	50 Ohms	18 GHz	10 in	254 mm	Hand Formable	0.086
MINI-CIRCUITS 086-10SMRSM+	105 ░C	-55 °C	Male	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	SMA Plug	Right Angle, SMA Plug	SMA to SMA	Blue	50 Ohms	18 GHz	10 in	254 mm	Hand Formable	0.086
MINI-CIRCUITS 086-10SMR+	105 ░C	-55 °C	Male	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	SMA Plug, Right Angle	Right Angle, SMA Plug	SMA to SMA	Blue	50 Ohms	18 GHz	10 in	254 mm	Hand Formable	0.086

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 10.000" (254.00mm)
