TERM BLK 2POS SIDE ENTRY 5MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLK 2POS SIDE ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796691-2	796691 Series

Clamp Material - Plating	Brass - Tin Plated	Brass - Tin Plated
Color	Blue	Blue
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2 - 8
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLK 8POS SIDE ENTRY 5MM PCB

Part	Positions Per Level	Features	Mating Orientation	Color	Wire Termination	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]	Current	Voltage	Number of Levels	Screw Thread	Clamp Material - Plating	Screw Material - Plating	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 796691-8	8	Interlocking (Side)	Horizontal with Board	Blue	Screw - Rising Cage Clamp	0.79 Nm	7 Lb-In	Brass - Tin Plated	17.5 A	300 V	2	M3	Brass - Tin Plated	Brass - Nickel Plated	Through Hole	30 AWG	12 AWG	5 mm	0.197 in
TE Connectivity AMP Connectors 796691-2	2	Interlocking (Side)	Horizontal with Board	Blue	Screw - Rising Cage Clamp	0.79 Nm	7 Lb-In	Brass - Tin Plated	17.5 A	300 V	2	M3	Brass - Tin Plated	Brass - Nickel Plated	Through Hole	30 AWG	12 AWG	5 mm	0.197 in
TE Connectivity AMP Connectors 796691-6	6	Interlocking (Side)	Horizontal with Board	Blue	Screw - Rising Cage Clamp	0.79 Nm	7 Lb-In	Brass - Tin Plated	17.5 A	300 V	2	M3	Brass - Tin Plated	Brass - Nickel Plated	Through Hole	30 AWG	12 AWG	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

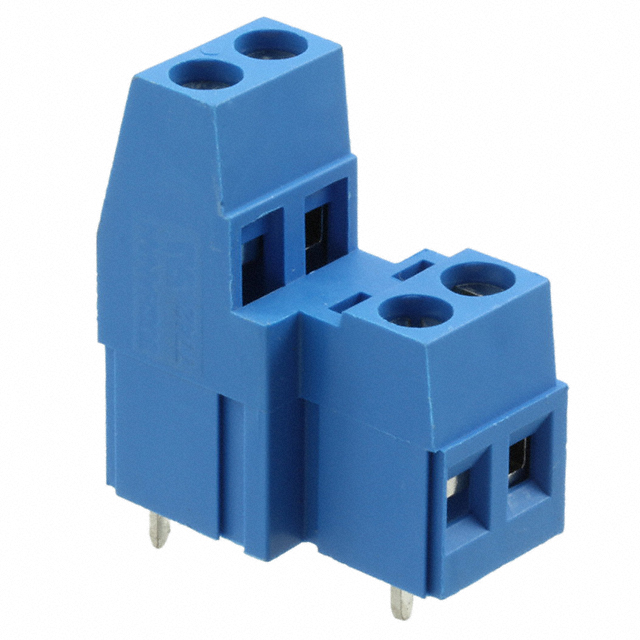

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
