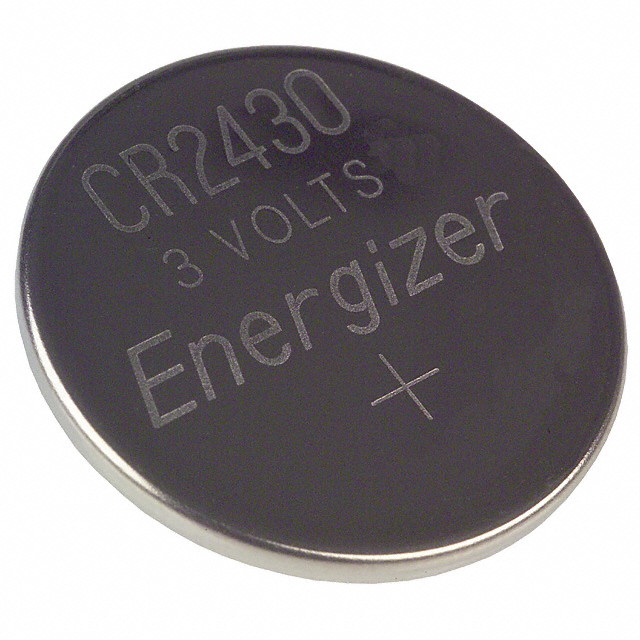

CR2430VP
ObsoleteEnergizer Battery Company
BATTERY LITHIUM 3V COIN 24.5MM
CR2430VP
ObsoleteEnergizer Battery Company
BATTERY LITHIUM 3V COIN 24.5MM
Description
General part information
CR2430VP
Coin, 24.5mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | CR2430VP |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 24.5 mm |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity (Charge) | 290 mAh |
| Discharge Rate (Current) | 290 µA |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 0.96 in |
| Size / Dimension Height | 0.12 in |
| Storage/Refrigeration Temperature | Room Temperature |
| Termination Style | Requires Holder |
| Voltage - Rated | 3 VDC |
| Weight | 4.6 g |
