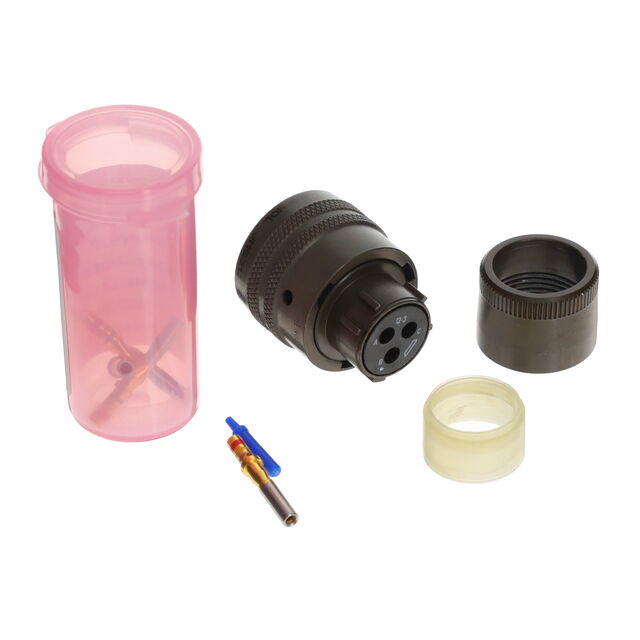

MS3126E12-3SY
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3126E12-3SY
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126E12-3SY | MS3126E12 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 8 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Y | Y, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 12-3 | 12-3, 12-8 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 1000 VAC | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 68.54 | |
| 10 | $ 62.90 | |||
| 25 | $ 60.48 | |||
| 50 | $ 58.46 | |||
| 100 | $ 55.24 | |||
MS3126E12 Series
PLUG
| Part | Grade | Qualification | Primary Material | Backshell Material, Plating | Color | Ingress Protection | Shielding | Shell Size - Insert | Contact Finish - Mating | Insert Material | Voltage Rating | Applications | Mounting Type | Current Rating (Amps) | Shell Material | Connector Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Shell Finish | Contact Material | Fastening Type | Orientation | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126E12-8P(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E12-10S(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E12-10P(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E12-3P(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E12-3SY | Military | MIL-DTL-26482 Series I | Metal | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Unshielded | 12-3 | Gold | Neoprene | 1000 VAC | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Free Hanging (In-Line) | 13 A | Aluminum | Female Sockets, Plug | Backshell, Coupling Nut | -55 °C | 125 °C | Crimp | Olive Drab Chromate over Cadmium | Copper Alloy | Bayonet Lock | Y | |
Amphenol Industrial Operations MS3126E12-8S | Military | MIL-DTL-26482 Series I | Metal | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Unshielded | 12-8 | Gold | Neoprene | 600 VAC | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Free Hanging (In-Line) | 7.5 A | Aluminum | Female Sockets, Plug | Backshell, Coupling Nut | -55 °C | 125 °C | Crimp | Olive Drab Chromate over Cadmium | Copper Alloy | Bayonet Lock | N | 8 |
Amphenol Industrial Operations MS3126E12-3S(LC) |
Description
General part information
MS3126E12 Series
3 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
