PE2CP1050
ActivePasternack

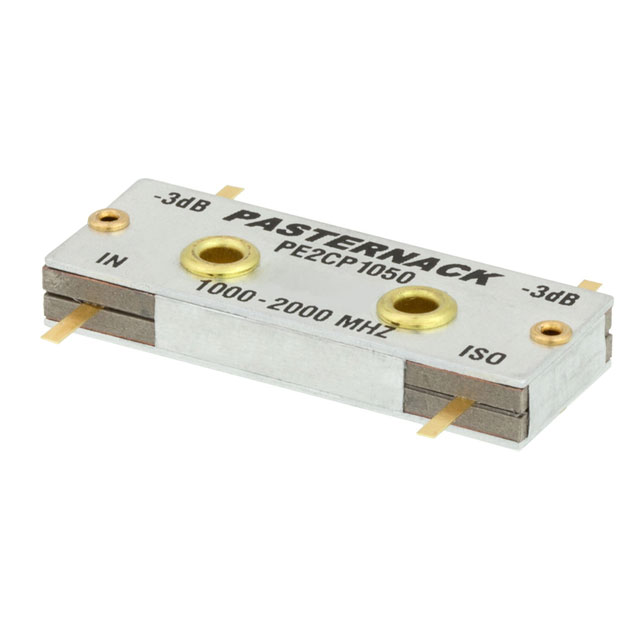

90DEG PCB HYB CPL 1-2GHZ 400W
PE2CP1050
ActivePasternack
90DEG PCB HYB CPL 1-2GHZ 400W
Description
General part information
PE2CP1050
RF Directional Coupler General Purpose 1GHz ~ 2GHz 400W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2CP1050 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 1 GHz |
| Insertion Loss | 0.2 dB |
| Isolation | 20 dB |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 400 VA |
