CGM20N63

Active

Switchcraft Inc.

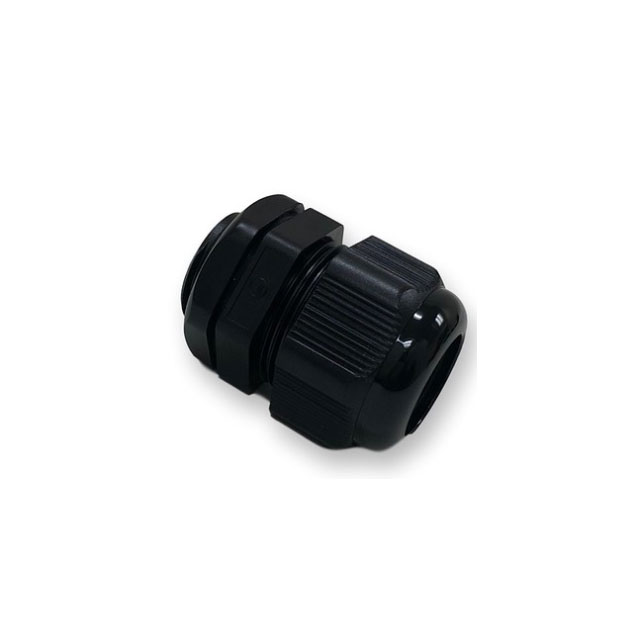

CABLE GLAND 8-16MM M20 THERMOPL

Search across all available documentation for this part.

Active

Switchcraft Inc.

CABLE GLAND 8-16MM M20 THERMOPL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CGM20N63	CGM20N Series

Color	Black	Black
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Thermoplastic	Thermoplastic
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "	0.441 - 0.63 "
Outside Cable Diameter (Max) [Max] [diameter]	16 mm	11.2 - 16 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm	5.5 - 8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in	0.217 - 0.315 in
Thread Length	0.39 in	0.39 in
Thread Length	9.91 mm	9.91 mm
Thread Size	M20x1.5	M20x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 8-16MM M20 THERMOPL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Type	Thread Length	Thread Length	Color	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Switchcraft Inc. CGM20N63	100 °C	-40 °C	Thermoplastic	Cable Gland	0.39 in	9.91 mm	Black	IP68 - Dust Tight, Waterproof	M20x1.5	0.63 "	16 mm	O-Ring, Seal	8 mm	0.315 in
Switchcraft Inc. CGM20N44	100 °C	-40 °C	Thermoplastic	Cable Gland	0.39 in	9.91 mm	Black	IP68 - Dust Tight, Waterproof	M20x1.5	0.441 "	11.2 mm	O-Ring, Seal	5.5 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Thermoplastic M20x1.5 Black
