Description
General part information
TP5531U-CR

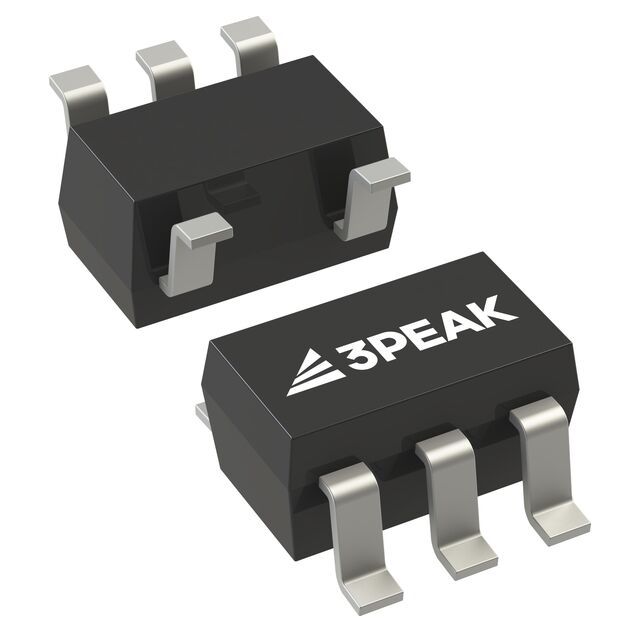

Chopper (Zero-Drift) Amplifier 1 Circuit Single Ended, Rail-to-Rail SC-70-5
Technical Specifications
Parameters and characteristics for this part
| Specification | TP5531U-CR |
|---|---|
| Amplifier Type | Chopper (Zero-Drift) |
| Current - Input Bias | 50 pA |
| Current - Output / Channel | 60 mA |
| Current - Supply | 45 µA |
| Gain Bandwidth Product | 350 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Rail-to-Rail, Single Ended |
| Package / Case | SOT-353, SC-70-5, 5-TSSOP |
| Package Name | SC-70-5 |
| Slew Rate | 0.16 V/µs |
| Voltage - Input Offset | 1 µV |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.8 V |
