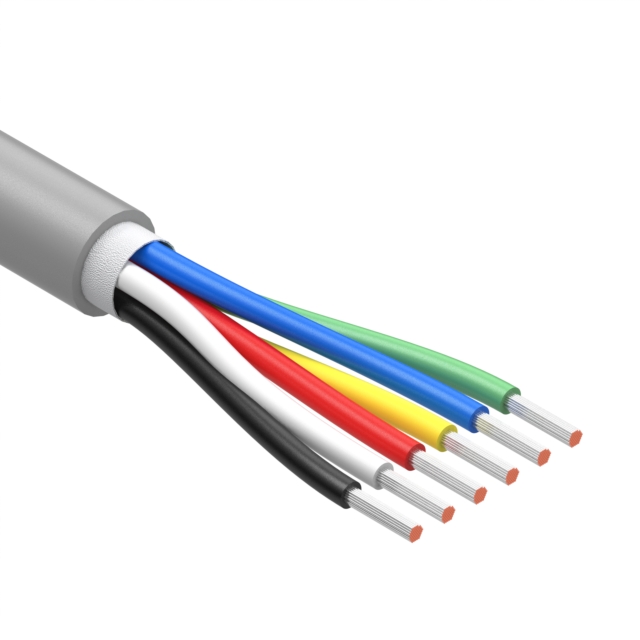

Specification	30-02734

Cable Type	Conductor, Multi
Conductor Insulation	High Density Polyethylene (HDPE)
Conductor Material	Tinned, Copper
Conductor Strand Count	65
Conductor Strand Diameter	0.005 in
Features	Biological Compatibility
Jacket (Insulation) Diameter	0.26 in
Jacket (Insulation) Material	Thermoplastic Polyurethane (TPU)
Jacket (Insulation) Thickness	0.0276 in
Jacket Color	Gray
Length	502 ft
Number of Conductors	6
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Ratings	10993, ISO
Voltage	150 V
Wire Gauge	18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources

No documents available
