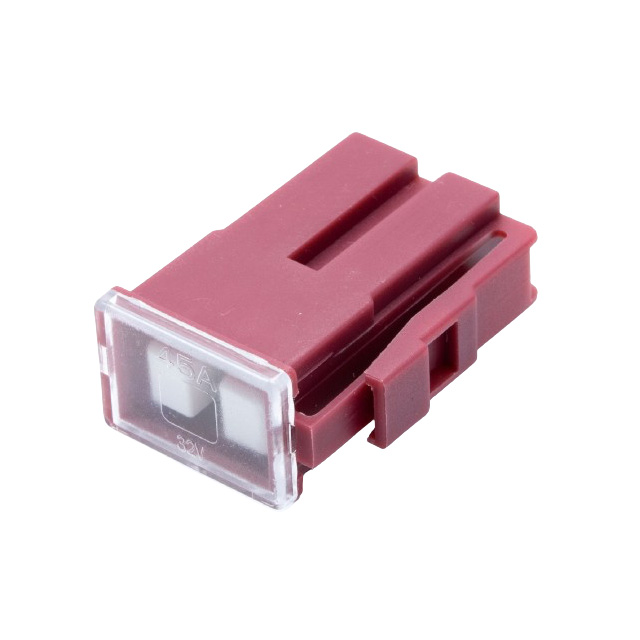

TFLP-45A

Active

OptiFuse

FUSE AUTO 45A 32VDC AUTO LINK

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 45A 32VDC AUTO LINK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TFLP-45A	TFLP Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Red	Gray, Red
Current Rating (Amps)	45 A	45 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Auto Link	Auto Link
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	23 mm	23 mm
Size / Dimension [x]	0.906 in	0.906 in
Size / Dimension [y]	0.622 "	0.622 "
Size / Dimension [y]	15.8 mm	15.8 mm
Size / Dimension [z]	38.8 mm	38.8 mm
Size / Dimension [z]	1.528 "	1.528 "
Voltage Rating - DC	32 V	32 V

FUSE AUTO 75A 32VDC AUTO LINK

Part	Breaking Capacity @ Rated Voltage	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Response Time	Color	Package / Case	Fuse Type	Voltage Rating - DC	Approval Agency	Mounting Type	Current Rating (Amps)
OptiFuse TFLP-75A	1 kA	38.8 mm	23 mm	0.906 in	0.622 "	1.528 "	15.8 mm	Fast Blow	Gray	Auto Link	Automotive	32 V	ISO, SAE	Requires Holder
OptiFuse TFLP-45A	1 kA	38.8 mm	23 mm	0.906 in	0.622 "	1.528 "	15.8 mm	Fast Blow	Red	Auto Link	Automotive	32 V	ISO, SAE	Requires Holder	45 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

45 A AC 32 V DC Fuse Automotive Requires Holder Auto Link
