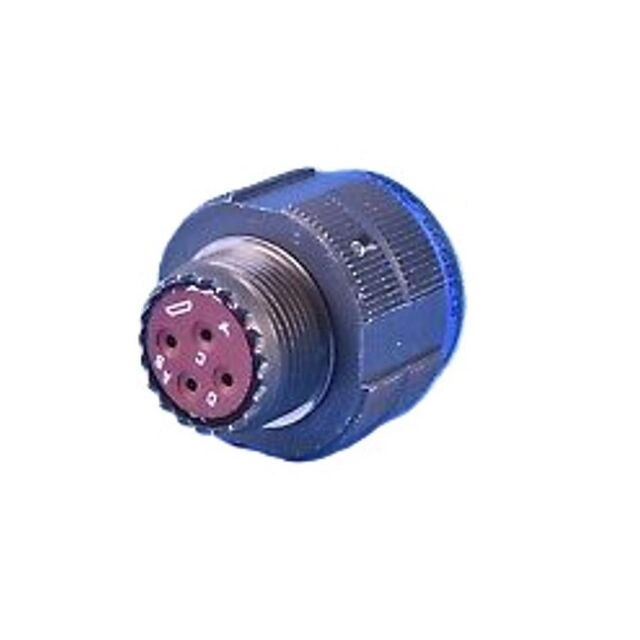

D38999/20KE99PBL
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20KE99PBL
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/20KE99PBL | D38999/20KE Series |
|---|---|---|
| - | - | |
| Applications | - | Aerospace, Aviation, Military, Marine |
| Color | - | Silver |
| Connector Type | Receptacle Housing | Receptacle, Female Sockets, Receptacle Housing |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 1.27 µm |
| Contact Finish Thickness - Mating | - | 50 µin |
| Contact Material | - | Copper Alloy |
| Contact Type | Crimp | Crimp |
| Current Rating (Amps) | - | 7.5 - 13 A |
| Grade | - | Military |
| Housing Color | Silver | Silver |
| Includes | 1 pc - 1 Insert Shell | 1 pc - 1 Insert Shell |
| Ingress Protection | Waterproof | Waterproof, IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 23 | 8 - 26 |
| Operating Temperature [Max] | 200 °C | 125 - 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | B, N |
| Primary Material | Metal | Metal |
| Qualification | - | MIL-DTL-38999 Series III |
| Shell Finish | - | Passivated |
| Shell Material | - | Stainless Steel |
| Shell Size - Insert | - | 17-8 |
| Shell Size - Insert | - | 17 |
| Shell Size - Insert | - | 26 |
| Shell Size, MIL | E | E |
| Shielding | - | Shielded |
| Termination | - | Crimp |
| Type | For Female Sockets | For Female Sockets |
D38999/20KE Series
D38999/20KE26SBL
| Part | Contact Material | Termination | Insert Material | Qualification | Mounting Feature | Grade | Shell Size - Insert | Ingress Protection | Shell Finish | Shielding | Number of Positions | Orientation | Contact Finish - Mating | Primary Material | Applications | Shell Size, MIL | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Material Flammability Rating | Shell Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Type | Includes | Note | Contact Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair D38999/20KE26SBL | ||||||||||||||||||||||||||||||||
Corsair D38999/20KE8SB | Copper Alloy | Crimp | Thermoplastic | MIL-DTL-38999 Series III | Flange | Military | 17-8 | Waterproof | Passivated | Shielded | 8 | B | Gold | Metal | Aerospace, Aviation, Military | E | Receptacle, Female Sockets | 1.27 µm | 50 µin | Silver | UL94 V-0 | Stainless Steel | 13 A | 125 °C | -65 ░C | |||||||
Corsair D38999/20KE99PBL | Thermoplastic | Flange | Waterproof | 23 | N | Metal | E | Receptacle Housing | UL94 V-0 | 200 °C | -65 ░C | Silver | For Female Sockets | 1 pc - 1 Insert Shell | Contacts Not Included | Crimp | ||||||||||||||||
Corsair D38999/20KE26SB | Copper Alloy | Crimp | Thermoplastic | Flange | IP67 - Dust Tight, Waterproof | Passivated | Shielded | 26 | B | Gold | Metal | Aviation, Marine, Military | E | Receptacle, Female Sockets | 1.27 µm | 50 µin | Stainless Steel | 7.5 A | 200 °C | -65 ░C | 17 | 26 | ||||||||||
Corsair D38999/20KE26SAL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 78.00 | |
| 10 | $ 75.66 | |||
| 25 | $ 73.47 | |||
| 50 | $ 70.41 | |||
| 100 | $ 69.45 | |||
| 250 | $ 67.60 | |||
| 500 | $ 66.70 | |||
| 1000 | $ 65.84 | |||
Description
General part information
D38999/20KE Series
23 Position Circular Connector Receptacle Housing Panel Mount
