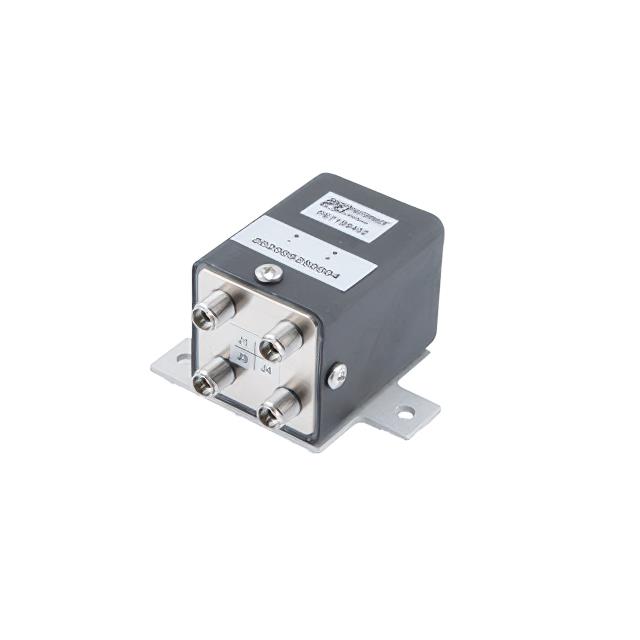

PE71S6432
ActivePasternack
TRANSFER FAILSAFE DC TO 40 GHZ E
PE71S6432
ActivePasternack
TRANSFER FAILSAFE DC TO 40 GHZ E
Description
General part information
PE71S6432
RF Switch IC SATCOM 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S6432 |
|---|---|
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.35 dB |
| Isolation | 80 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | SATCOM |
| Test Frequency | 40 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11 VDC |
