1530.01
ObsoleteLaird Thermal Systems, Inc.

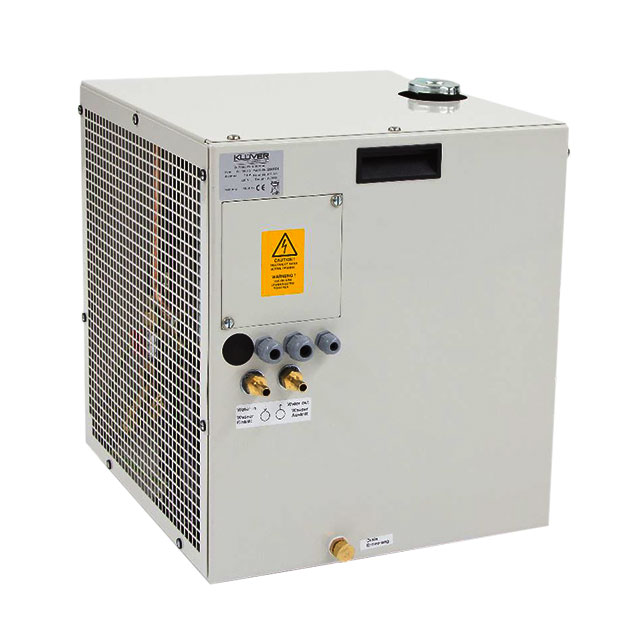

HEAT EXCHANGER 230V 6LPM 3000W
1530.01
ObsoleteLaird Thermal Systems, Inc.
HEAT EXCHANGER 230V 6LPM 3000W
Description
General part information
1530.01
Active, Heat Exchanger 230VAC 3000 W 2.5 A 1.59GPM (6.0LPM)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1530.01 |
|---|---|
| Connection Size | 9 mm |
| Connection Type | Press Fit |
| Current | 2.5 A |
| Dimensions - Overall Height | 18.94 " |
| Dimensions - Overall Length | 18.86 " |
| Dimensions - Overall Width | 15.67 " |
| Features | Bypass Valve Protection, Adjustable Flow Rate |
| Flow Rate | 1.59 GPM |
| Fluid Capacity | 3700 ML |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 5 °C |
| Power - Cooling | 3000 W |
| Product Type | Active, Heat Exchanger |
| Voltage | 230 V |
| Weight | 85 lbs |
