S152K43X7RP63K5R
ActiveVishay Dale
CAP CER 1500PF 2KV X7R RADIAL
S152K43X7RP63K5R
ActiveVishay Dale
CAP CER 1500PF 2KV X7R RADIAL
Description
General part information
S152K43X7RP63K5R

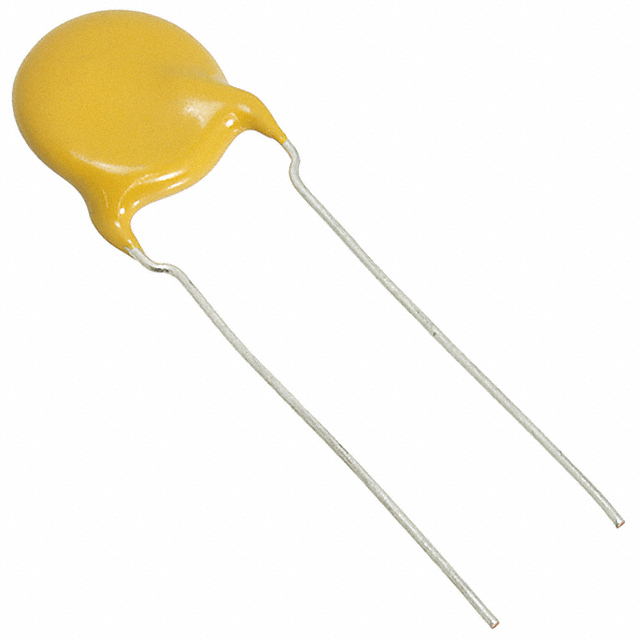

1500 pF ±10% 2000V (2kV) Ceramic Capacitor X7R Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | S152K43X7RP63K5R |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 pF |
| Height - Seated (Max) | 0.591 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.433 in |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 2000 VAC |
