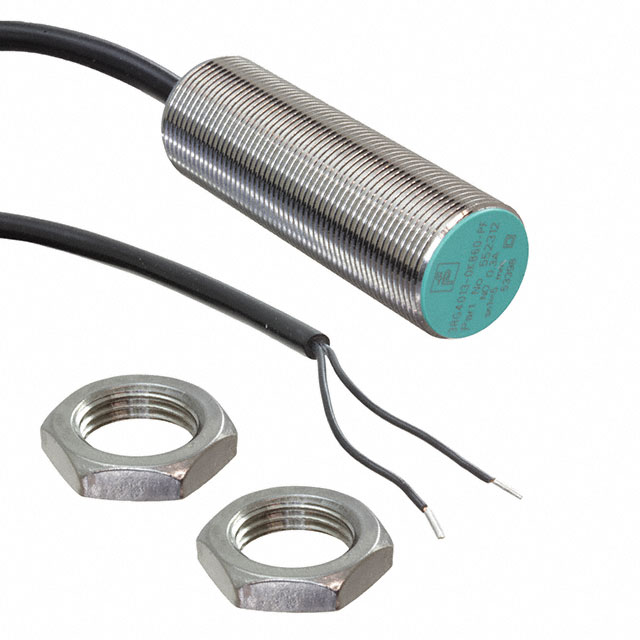

INDUCTIVE SEN 5MM NO
Search across all available documentation for this part.
INDUCTIVE SEN 5MM NO
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
INDUCTIVE SEN 5MM NO
Technical documentation and resources
No documents available
Parameters and characteristics commom to parts in this series
| Specification | 3RG4013-0KB60-PF | 3RG4013 Series |
|---|---|---|
| Indicator [custom] | LED | LED |
| Ingress Protection | IP67 | IP67 |
| Material - Body | Stainless Steel | Brass, Stainless Steel |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | SCR-NO, 2-Wire | SCR-NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 | Cylinder, Threaded - M18 |
| Response Frequency | 300 Hz | 300 Hz |
| Sensing Distance | 0.197 in | 0.197 in |
| Sensing Distance | 5 mm | 5 mm |
| Sensor Type | Inductive | Inductive |
| Shielding | Unshielded | Unshielded |
| Termination Style | Cable | Cable |
| Voltage - Supply [Max] | 320 VDC, 265 VAC | 265 - 320 VDC |
| Voltage - Supply [Min] | 20 VAC, 20 VDC | 20 VAC |
INDUCTIVE SEN 5MM NO
| Part | Ingress Protection | Sensing Distance | Sensing Distance | Termination Style | Response Frequency | Indicator [custom] | Output Type | Package / Case | Material - Body | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PEPPERL+FUCHS 3RG4013-0KB00-PF | IP67 | 0.197 in | 5 mm | Cable | 300 Hz | LED | SCR-NO, 2-Wire | Cylinder, Threaded - M18 | Brass | Unshielded | -25 °C | 85 °C | 265 VAC, 320 VDC | 20 VAC, 20 VDC | Inductive |
PEPPERL+FUCHS 3RG4013-0KB60-PF | IP67 | 0.197 in | 5 mm | Cable | 300 Hz | LED | SCR-NO, 2-Wire | Cylinder, Threaded - M18 | Stainless Steel | Unshielded | -25 °C | 85 °C | 265 VAC, 320 VDC | 20 VAC, 20 VDC | Inductive |
