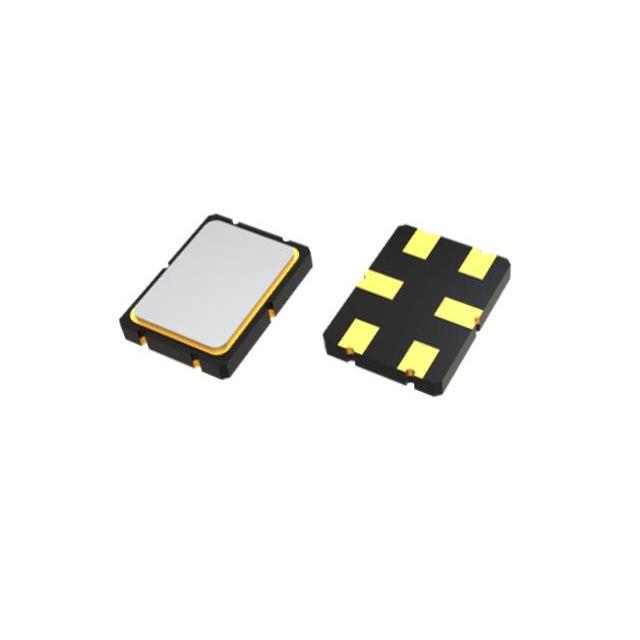

1575H-40.000GWVDWSK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
OSCILLATOR, 7050, HCMOS, 40MHZ,
1575H-40.000GWVDWSK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
OSCILLATOR, 7050, HCMOS, 40MHZ,
Description
General part information
1575H-40.000GWVDWSK
Oscillator
Technical Specifications
Parameters and characteristics for this part
| Specification | 1575H-40.000GWVDWSK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 40 MHz |
| Frequency Stability | 30 ppm, 500 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.051 in, 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
