5-87589-9

Active

TE Connectivity AMP Connectors

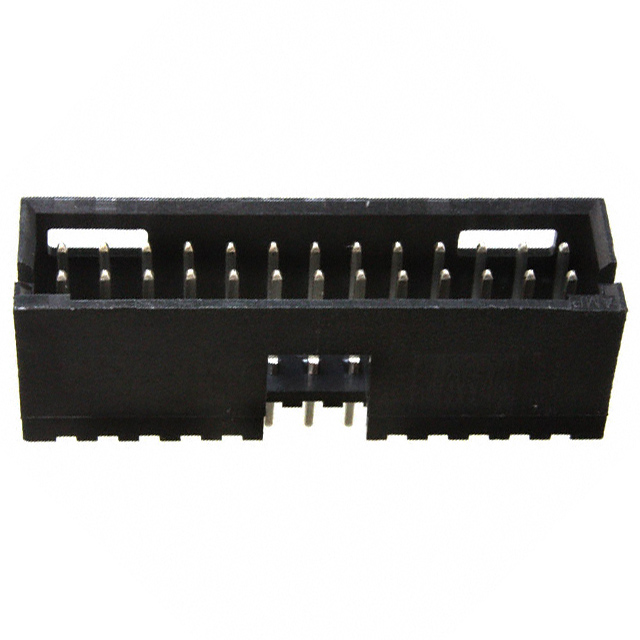

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

5-87589-9

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.29
		10	$ 3.76
		128	$ 3.46

Description

General part information

87589 Series

Connector Header Through Hole 26 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-87589-9	87589 Series

Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.44 in	0.44 in
Insulation Height	11.18 mm	11.18 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	26	8 - 50
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87589 Series

CONN HEADER VERT 50POS 2.54MM

Part	Contact Shape	Shrouding	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Material	Insulation Height	Insulation Height	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Current Rating (Amps)	Contact Material	Overall Contact Length	Overall Contact Length	Insulation Color	Mounting Type	Number of Positions	Contact Finish - Post	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 2-87589-1	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	50	Tin-Lead	Male Pin	-65 ░C	105 ░C	Board to Board, Cable	Tin-Lead
TE Connectivity AMP Connectors 87589-9	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	26	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable	Tin-Lead
TE Connectivity AMP Connectors 5-87589-5	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	18	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable
TE Connectivity AMP Connectors 87589-6	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	20	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable	Tin-Lead
TE Connectivity AMP Connectors 7-87589-1	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	50	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable
TE Connectivity AMP Connectors 8-87589-5	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	8	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable
TE Connectivity AMP Connectors 1-87589-1	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	30	Tin-Lead	Male Pin	-65 ░C	105 ░C	Board to Board, Cable	Tin-Lead
TE Connectivity AMP Connectors 6-87589-4	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	36	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable
TE Connectivity AMP Connectors 87589-8	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole	24	Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable	Tin-Lead
TE Connectivity AMP Connectors 87589-4	Square	Shrouded - 4 Wall	2	3.18 mm	0.125 in	Solder	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	2.54 çm	100 çin	2.54 µm	100 µin	All	Glass Filled, Nylon, Polyamide (PA)	0.44 in	11.18 mm	Detent Lock	0.318 "	8.08 mm	UL94 V-0	3 A	Phosphor Bronze	13.55 mm	0.533 in	Black	Through Hole		Tin	Male Pin	-65 ░C	105 ░C	Board to Board, Cable	Tin-Lead	16
