WO-3809V-18
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
WO-3809V-18
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WO-3809V-18 |
|---|---|
| Coil Type | Bipolar |
| Current Rating (Amps) | 600 mA |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.591 in |
| Length - Shaft and Bearing [x] | 15 mm |
| NEMA Frame Size | 14 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 0.308 gcm² |
| Size / Dimension [diameter] | 36.3 mm |
| Size / Dimension [diameter] | 1.429 in |
| Step Angle | 0.9 ° |
| Steps per Revolution | 400 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 113 mNm |
| Torque - Holding (oz-in / mNm) | 16 oz-in |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 40 | $ 43.16 | |
Description
General part information

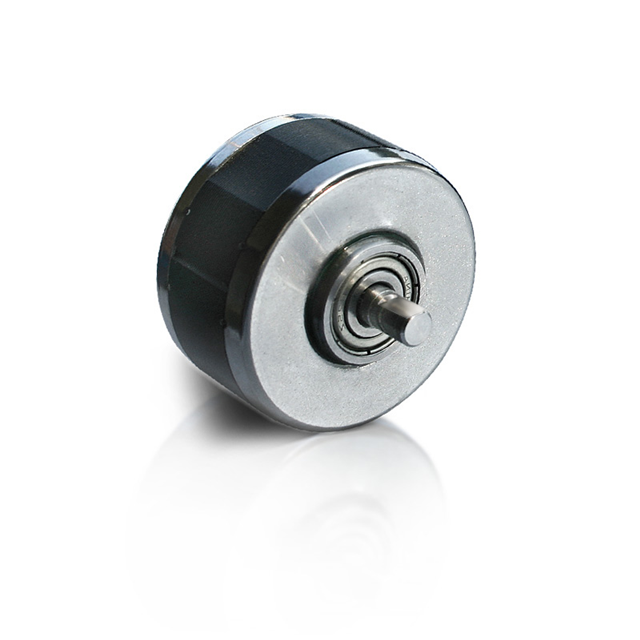

WO-3809V-18
Bipolar Stepper Motor Frame Size 14 400.0 Step 600 mA 24VDC
Documents
Technical documentation and resources
No documents available
