GHP75-24P

Active

Gardtec Incorporated

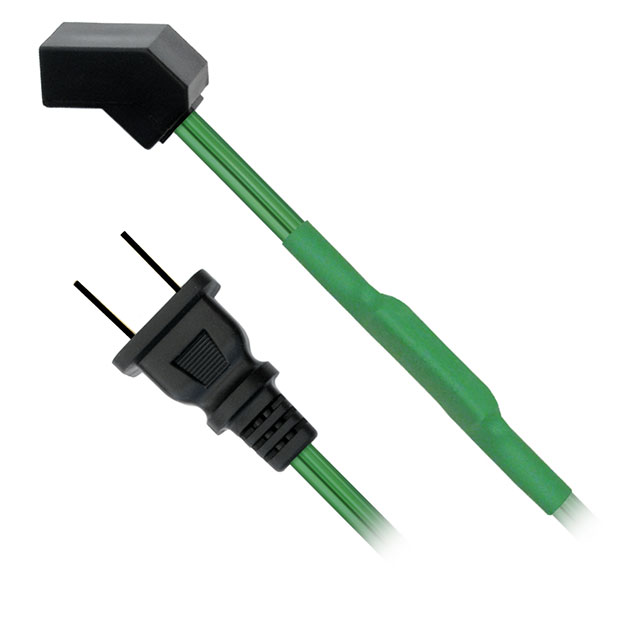

GREEN FAN CORD 24" NEMA 1-15PLUG

Search across all available documentation for this part.

Active

Gardtec Incorporated

GREEN FAN CORD 24" NEMA 1-15PLUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GHP75-24P	GHP75 Series

1st Connector	Fan Terminal Receptacle 45°	Fan Terminal Receptacle 45°
2nd Connector	NEMA 1-15 Plug	NEMA 1-15 Plug
Approval Agency Marking	cURus	cURus
Cord Type	SPT-1	SPT-1
Features	Thermostat	Thermostat
Length	-	36 - 72 in
Length	-	1.83 - 91.44 m
Length [x]	609.6 mm	609.6 mm
Length [x]	24 in	24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Male Plug	Female Receptacle to Male Plug
Voltage Rating	300 VDC	300 VDC

GREEN FAN CORD 24" NEMA 1-15PLUG

Part	2nd Connector	Length [x]	Length [x]	Number of Conductors	Style	Features	Voltage Rating	Approval Agency Marking	1st Connector	Cord Type	Operating Temperature	Length	Length
Gardtec Incorporated GHP75-24P	NEMA 1-15 Plug	609.6 mm	24 in	2	Female Receptacle to Male Plug	Thermostat	300 VDC	cURus	Fan Terminal Receptacle 45°	SPT-1	105 C
Gardtec Incorporated GHP75-72P	NEMA 1-15 Plug			2	Female Receptacle to Male Plug	Thermostat	300 VDC	cURus	Fan Terminal Receptacle 45°	SPT-1	105 C	72 in	1.83 m
Gardtec Incorporated GHP75-36P	NEMA 1-15 Plug			2	Female Receptacle to Male Plug	Thermostat	300 VDC	cURus	Fan Terminal Receptacle 45°	SPT-1	105 C	36 in	91.44 cm
