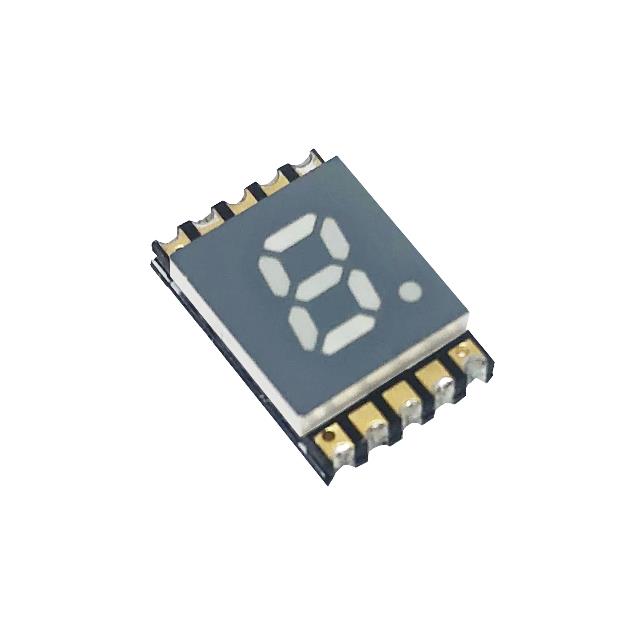

SMC201LE-UT GW

Active

American Opto Plus LED

ULTRA THIN 7SEG 0.2" RED 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMC201LE-UT GW

Active

American Opto Plus LED

ULTRA THIN 7SEG 0.2" RED 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMC201LE-UT GW	SMC201 Series

Color	Red	Amber, Red, Blue, Green, Yellow
Common Pin	Common Cathode	Common Cathode
Current - Test	20 mA	20 mA
Digit/Alpha Size	5.08 mm	5.08 mm
Digit/Alpha Size	0.2 in	0.2 in
Display Type	7-Segment	7-Segment
Millicandela Rating	15 mcd	2 - 50 mcd
Number of Characters [custom]	1	1
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW	70 - 120 mW
Size / Dimension [x]	0.132 "	0.132 - 0.315 "
Size / Dimension [x]	3.35 mm	3.35 - 8 mm
Size / Dimension [y]	0.291 "	0.283 - 0.291 "
Size / Dimension [y]	7.4 mm	7.2 - 7.4 mm
Size / Dimension [z]	0.433 in	0.128 - 0.433 "
Size / Dimension [z]	11 mm	3.25 - 11 mm
Voltage - Forward (Vf) (Typ)	2 V	2 - 3.2 V
Wavelength - Peak	632 nm	525 - 650 nm

SMC201 Series

0.2" SGL SMD DISPLAY - AMBER

Part	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Color	Display Type	Millicandela Rating	Number of Characters [custom]	Current - Test	Common Pin	Wavelength - Peak
American Opto Plus LED SMC201LA G/W	70 mW	5.08 mm	0.2 in	10-SMD, No Lead	2 V	0.315 "	0.128 "	0.283 "	7.2 mm	3.25 mm	8 mm	Amber	7-Segment	12 mcd	1	20 mA	Common Cathode
American Opto Plus LED SMC201LE G/W	70 mW	5.08 mm	0.2 in	10-SMD, No Lead	2 V	0.315 "	0.128 "	0.283 "	7.2 mm	3.25 mm	8 mm	Red	7-Segment	12 mcd	1	20 mA	Common Cathode	632 nm
American Opto Plus LED SMC201LE-UT GW	70 mW	5.08 mm	0.2 in	10-SMD, No Lead	2 V	0.132 "	0.433 in	0.291 "	7.4 mm	11 mm	3.35 mm	Red	7-Segment	15 mcd	1	20 mA	Common Cathode	632 nm
American Opto Plus LED SMC201LB G/W	120 mW	5.08 mm	0.2 in	10-SMD, No Lead	3.2 V	0.315 "	0.128 "	0.283 "	7.2 mm	3.25 mm	8 mm	Blue	7-Segment	20 mcd	1	20 mA	Common Cathode
American Opto Plus LED SMC201LR G/W	75 mw	5.08 mm	0.2 in	10-SMD, No Lead	2 V	0.315 "	0.128 "	0.283 "	7.2 mm	3.25 mm	8 mm	Red	7-Segment	2 mcd	1	20 mA	Common Cathode	650 nm
American Opto Plus LED SMC201PG G/W	120 mW	5.08 mm	0.2 in	10-SMD, No Lead	3.2 V	0.315 "	0.128 "	0.283 "	7.2 mm	3.25 mm	8 mm	Green	7-Segment	50 mcd	1	20 mA	Common Cathode	525 nm
American Opto Plus LED SMC201LY G/W	70 mW	5.08 mm	0.2 in	10-SMD, No Lead	2 V	0.315 "	0.128 "	0.283 "	7.2 mm	3.25 mm	8 mm	Yellow	7-Segment	12 mcd	1	20 mA	Common Cathode	593 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.58
		10	$ 1.93
		100	$ 1.61
		500	$ 1.13
		1000	$ 1.03

Description

General part information

SMC201 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.433" H x 0.291" W x 0.132" D (11.00mm x 7.40mm x 3.35mm) 10-SMD, No Lead
