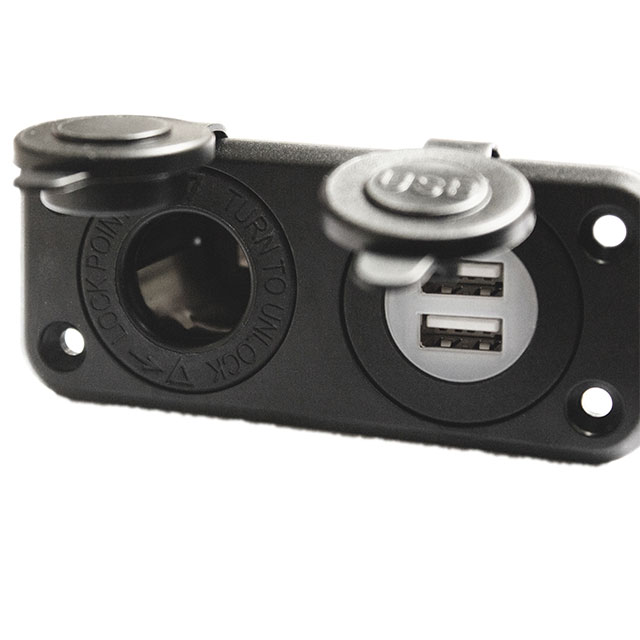

A1-P21USB2-1-B-PD

Active

Switch Components

BATT CHG USB/SKT IN-VEH 5V 2.1A

Search across all available documentation for this part.

Active

Switch Components

BATT CHG USB/SKT IN-VEH 5V 2.1A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB, Socket In-Vehicle Battery Charger 5V 2.1A

Technical documentation and resources

Specification	A1-P21USB2-1-B-PD	A1-P21 Series

Approval Agency	UL	UL
Battery Chemistry	Mobile Devices	Mobile Devices
Charge Current - Max [Max]	2.1 A	2.1 A
Color	-	Black
Current Rating (Amps)	-	20 A
Number of Cells	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	4.13 in	4.13 in
Size / Dimension [x]	104.9 mm	104.9 mm
Size / Dimension [y]	1.77 "	1.77 "
Size / Dimension [y]	45 mm	45 mm
Size / Dimension [z]	51.1 mm	51.1 mm
Size / Dimension [z]	2.01 in	2.01 in
Specifications	-	Nylon, LED Indicator
Termination Style	USB A Receptacle	USB A Receptacle
Type	USB, Socket In-Vehicle	USB, Socket In-Vehicle, Auto Power Socket
Voltage - Input [Max]	24 V	24 V
Voltage - Input [Min]	12 V	12 V
Voltage - Nominal	5 V	5 V
Voltage - Rated	-	12 VDC

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Cells	Voltage - Nominal	Type	Battery Chemistry	Termination Style	Charge Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Current Rating (Amps)	Voltage - Rated	Specifications
Switch Components A1-P21USB2-1-B-PD	UL	12 V	24 V	4.13 in	104.9 mm	51.1 mm	2.01 in	1.77 "	45 mm	2	5 V	USB, Socket In-Vehicle	Mobile Devices	USB A Receptacle	2.1 A	60 °C	0 °C
Switch Components A1-P21-1-B												Auto Power Socket						Black	20 A	12 VDC	LED Indicator, Nylon
