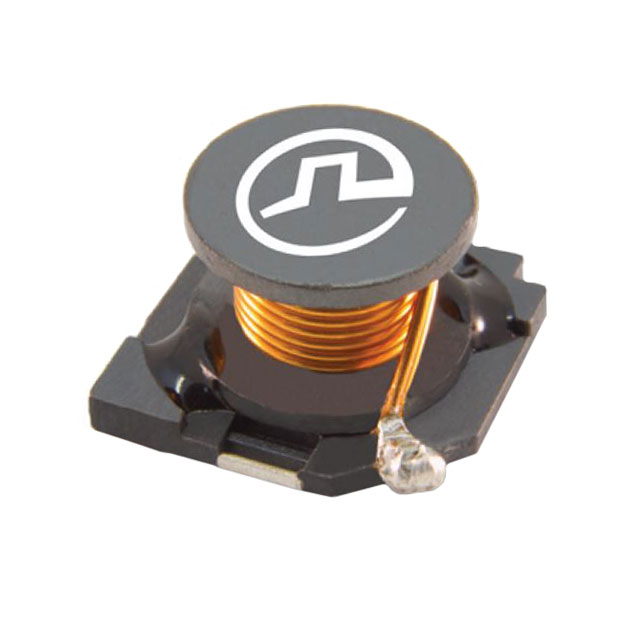

PA4310.822NLT
ActivePulse Electronics
FIXED IND 8.2UH 13A 36 MOHM SMD
PA4310.822NLT
ActivePulse Electronics
FIXED IND 8.2UH 13A 36 MOHM SMD
Description
General part information
PA4310.822NLT
8.2 µH Unshielded Wirewound Inductor 13 A 36mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4310.822NLT |
|---|---|
| Current Rating | 13 A |
| DC Resistance (DCR) (Max) | 36 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.504 in |
| Tolerance | 30 % |
| Type | Wirewound |
