Description
General part information
G11K0C-P06QF00-0000

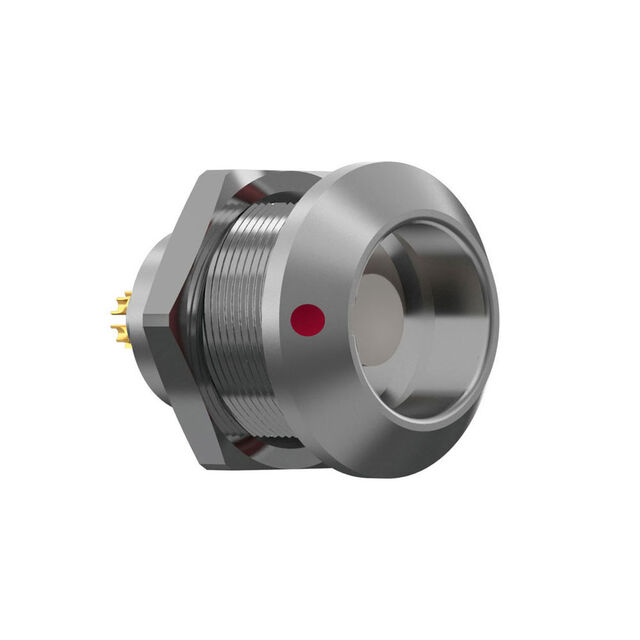

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | G11K0C-P06QF00-0000 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Military, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 6 A |
| Fastening Type | Push-Pull |
| Features | Ground |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 0 ° |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | 1 |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Termination | Solder Cup |
