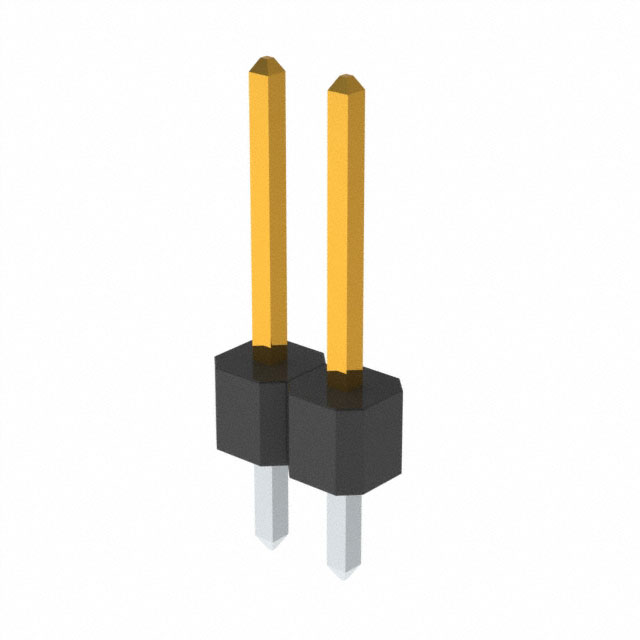

PBC02SFAN

Active

Sullins Connector Solutions

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC02SFAN

Active

Sullins Connector Solutions

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC02SFAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.538 "
Overall Contact Length	13.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC02 Series

Part	Shrouding	Connector Type	Insulation Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Termination	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions	Current Rating (Amps)	Mounting Type	Number of Rows	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Style	Insulation Height	Insulation Height	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Contact Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
Sullins Connector Solutions PBC02SAGN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm	1.05 in	26.67 mm	Solder	Push-Pull	0.23 in	5.84 mm	2.54 µm	100 µin	Gold	2	3 A	Through Hole	1	Square	125 °C	-65 ░C	Board to Board Cable	0.1 in	2.54 mm	Black	18.29 mm	0.72 "	Phosphor Bronze	Male Pin	All
Sullins Connector Solutions PBC02SAFN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm	0.95 in	24.13 mm	Solder	Push-Pull	0.23 in	5.84 mm	2.54 µm	100 µin	Gold	2	3 A	Through Hole	1	Square	125 °C	-65 ░C	Board to Board Cable	0.1 in	2.54 mm	Black			Phosphor Bronze	Male Pin	All	0.62 in	15.75 mm
Sullins Connector Solutions PBC02DBBN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm			Solder	Push-Pull	0.23 in	5.84 mm	2.54 µm	100 µin	Gold	4	3 A	Through Hole Right Angle	2	Square	125 °C	-65 ░C	Board to Board Cable	0.24 in	6.1 mm	Black	5.08 mm	0.2 in	Phosphor Bronze	Male Pin	All			2.54 mm	0.1 in
Sullins Connector Solutions PBC02SFAN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm	0.538 "	13.67 mm	Solder	Push-Pull	0.318 "		2.54 µm	100 µin	Gold	2	3 A	Through Hole	1	Square	125 °C	-65 ░C	Board to Board Cable	0.1 in	2.54 mm	Black	3.05 mm	0.12 in	Phosphor Bronze	Male Pin	All					8.08 mm
Sullins Connector Solutions PBC02DFBN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm	0.638 in	16.21 mm	Solder	Push-Pull	0.318 "		2.54 µm	100 µin	Gold	4	3 A	Through Hole	2	Square	125 °C	-65 ░C	Board to Board Cable	0.1 in	2.54 mm	Black			Phosphor Bronze	Male Pin	All	0.22 in	5.58 mm	2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PBC02DFDN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm	0.838 in	21.29 mm	Solder	Push-Pull	0.318 "		2.54 µm	100 µin	Gold	4	3 A	Through Hole	2	Square	125 °C	-65 ░C	Board to Board Cable	0.1 in	2.54 mm	Black	10.67 mm	0.42 in	Phosphor Bronze	Male Pin	All			2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PBC02DBAN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm			Solder	Push-Pull	0.23 in	5.84 mm	2.54 µm	100 µin	Gold	4	3 A	Through Hole Right Angle	2	Square	125 °C	-65 ░C	Board to Board Cable	0.24 in	6.1 mm	Black			Phosphor Bronze	Male Pin	All	0.1 in	2.54 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC02SBCN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm			Solder	Push-Pull	0.23 in	5.84 mm	2.54 µm	100 µin	Gold	2	3 A	Through Hole Right Angle	1	Square	125 °C	-65 ░C	Board to Board Cable	0.14 in	3.56 mm	Black	7.62 mm	0.3 "	Phosphor Bronze	Male Pin	All
Sullins Connector Solutions PBC02DFCN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm	0.738 "	18.75 mm	Solder	Push-Pull	0.318 "		2.54 µm	100 µin	Gold	4	3 A	Through Hole	2	Square	125 °C	-65 ░C	Board to Board Cable	0.1 in	2.54 mm	Black	8.13 mm	0.32 in	Phosphor Bronze	Male Pin	All			2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PBC02SBAN	Unshrouded	Breakaway Header	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 in	2.54 mm	Tin	10 çin	0.25 çm			Solder	Push-Pull	0.23 in	5.84 mm	2.54 µm	100 µin	Gold	2	3 A	Through Hole Right Angle	1	Square	125 °C	-65 ░C	Board to Board Cable	0.14 in	3.56 mm	Black			Phosphor Bronze	Male Pin	All	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.53
		10	$ 0.40
		100	$ 0.31
		500	$ 0.26
		1000	$ 0.24
		5000	$ 0.20
		10000	$ 0.20

Description

General part information

PBC02 Series

Connector Header Through Hole 2 position 0.100" (2.54mm)
