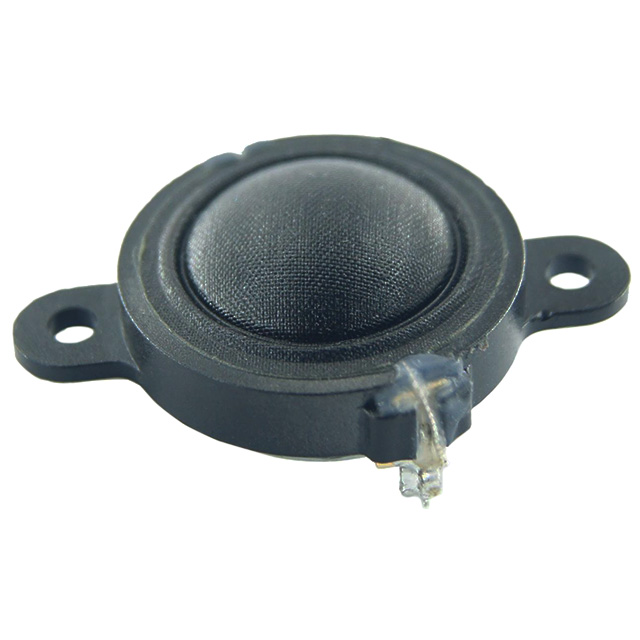

OC16SC04-04
ActivePeerless by Tymphany
SPEAKR 4.18OHM 100W TOP 83.7DB
OC16SC04-04
ActivePeerless by Tymphany
SPEAKR 4.18OHM 100W TOP 83.7DB
Description
General part information
OC16SC04-04
4.18 Ohms Tweeter Speaker 100 W 2.5 kHz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | OC16SC04-04 |
|---|---|
| Efficiency - dBA | 83.7 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 2152.63 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 2.5 kHz |
| Height - Seated (Max) | 0.52 in |
| Impedance | 4.18 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd |
| Port Location | Top |
| Power - Rated | 100 W |
| Shape | Round |
| Size / Dimension Diameter | 1.024 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Tweeter |
