Description
General part information

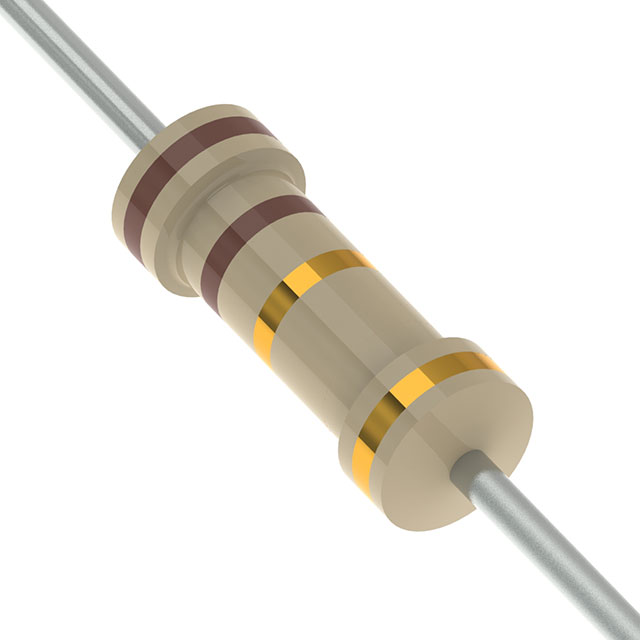

CFR50SJT-52-1R1
1.1 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Automotive AEC-Q200 Carbon Film
Technical Specifications
Parameters and characteristics for this part
| Specification | CFR50SJT-52-1R1 |
|---|---|
| Composition | Carbon Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 1.1 Ohm |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.248 in |
| Temperature Coefficient (Highest) | 350 ppm/°C |
| Temperature Coefficient (Lowest) | -500 ppm/°C |
| Temperature Coefficient (Negative) | -500 ppm/°C |
| Temperature Coefficient (Positive) | 350 ppm/°C |
| Tolerance | 5 % |
