LDD-C404NI

Active

Lumex Opto/Components Inc.

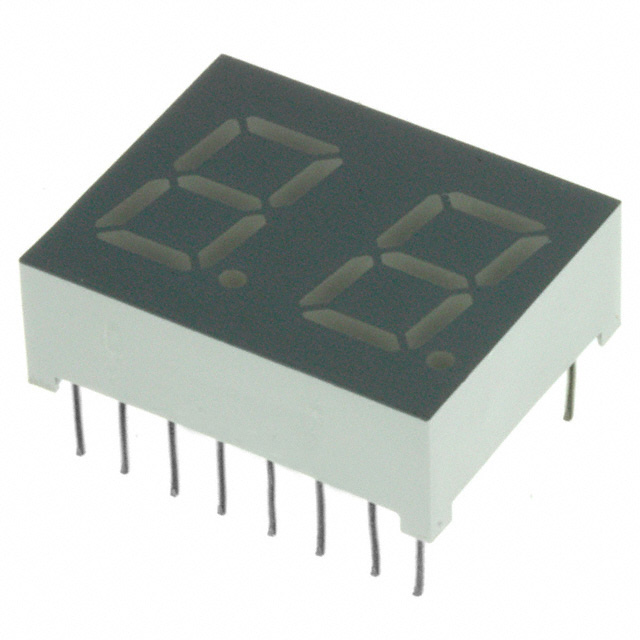

DISPLAY 7-SEG 0.4" DBL RED 16DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDD-C404NI

Active

Lumex Opto/Components Inc.

DISPLAY 7-SEG 0.4" DBL RED 16DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-C404NI

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	3.9 mcd
Number of Characters	2
Package / Case	0.5 in
Package / Case	16-DIP
Package / Case	12.7 mm
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	20.1 mm
Size / Dimension [y]	0.791 in
Size / Dimension [z]	0.276 in
Size / Dimension [z]	7 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LDD-C404 Series

DISPLAY 7-SEG 0.4" DBL RED 16DIP

Part	Power Dissipation (Max) [Max]	Common Pin	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Number of Characters	Color	Display Type	Digit/Alpha Size	Digit/Alpha Size [custom]	Current - Test
Lumex Opto/Components Inc. LDD-C404NI	105 mW	Common Cathode	2 V	0.5 in	16-DIP	12.7 mm	635 nm	20.1 mm	0.276 in	7 mm	0.63 "	16 mm	0.791 in	3.9 mcd	2	Red	7-Segment	10.16 mm	0.4 in	10 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.37
		25	$ 1.58
		100	$ 1.22
		500	$ 1.21

Description

General part information

LDD-C404 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 10mA 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) 16-DIP (0.500", 12.70mm)
