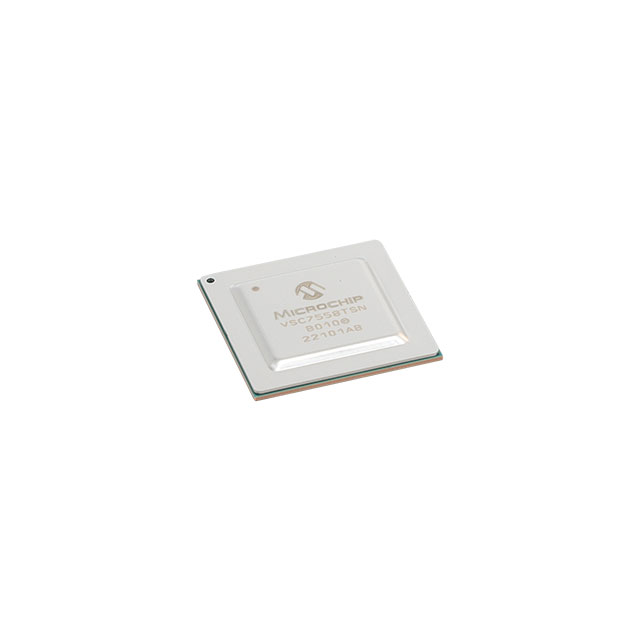

VSC7556-V/5CC
Active160G ENTERPRISE ETHERNET SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
VSC7556-V/5CC
Active160G ENTERPRISE ETHERNET SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSC7556-V/5CC |
|---|---|
| Function | Ethernet Switch |
| Interface | SPI |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 888-BGA, FCBGA |
| Supplier Device Package | 888-FCBGA (25x25) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 142.15 | |
| Microchip Direct | TRAY | 1 | $ 142.15 | |
| 25 | $ 118.46 | |||
| 100 | $ 107.69 | |||
| 1000 | $ 99.50 | |||
| 5000 | $ 94.37 | |||
VSC7556 Series
160G Enterprise Switch
| Part | Package / Case | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Function |
|---|---|---|---|---|---|---|---|
Microchip Technology VSC7556-V/5CC | 888-BGA, FCBGA | SPI | 105 ░C | 0 °C | 888-FCBGA (25x25) | Surface Mount | Ethernet Switch |
Description
General part information
VSC7556 Series
The VSC7556 SparX-5-160 is a 160 Gbps SMB/SME Ethernet Switch supporting a combination of 1G, 2.5G, 5G, 10G, and 25G Ethernet ports.
The device provides a rich set of enterprise Ethernet switching features. Using multistage versatile content aware processor (VCAP) technology, it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing and flexible frame manipulation.
A powerful 1 GHz dual-core CPU enables full management of a Layer 2 and Layer 3 Ethernet switch solution.
