Description
General part information

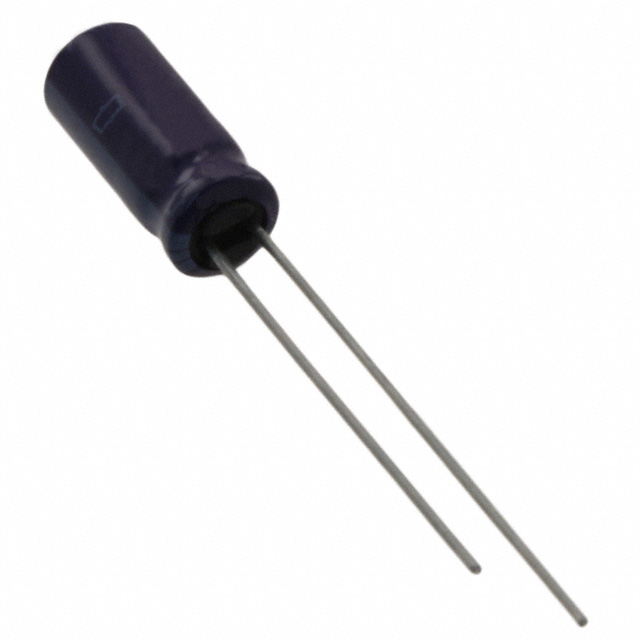

LXZ25VB821M10X25LL
820 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LXZ25VB821M10X25LL |
|---|---|
| Applications | General Purpose |
| Capacitance | 820 µF |
| Height - Seated (Max) | 0.984 in |
| Impedance | 45 mOhm |
| Lead Spacing | 0.197 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.44 A, 864 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
