16DRPS4E(D)
ActiveDelta Electronics

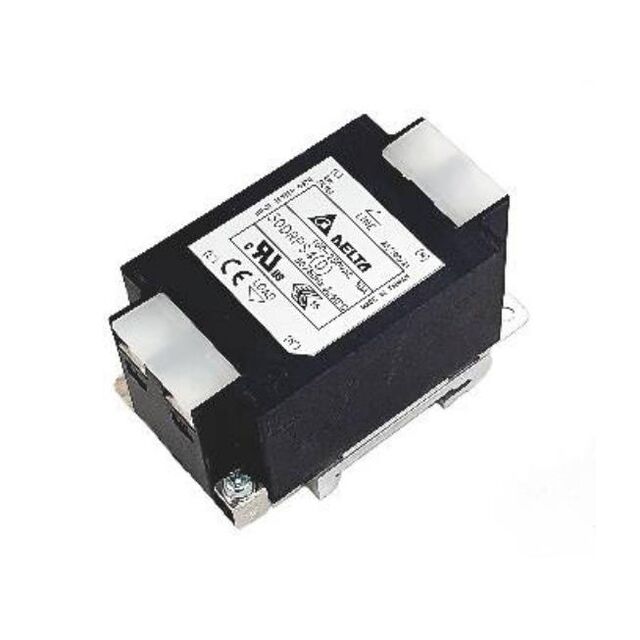

2-STAGE PLASTIC CASE FILTER 16A
16DRPS4E(D)
ActiveDelta Electronics
2-STAGE PLASTIC CASE FILTER 16A
Description
General part information
16DRPS4E(D)
Single Phase EMC/EMI Line Filter 16 A 250V 50/60Hz Two Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | 16DRPS4E(D) |
|---|---|
| Applications | General Purpose |
| Approval Agency | ENEC, cURus |
| Configuration | Two Stage |
| Current | 16 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 2.4 mH |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 250 V |
