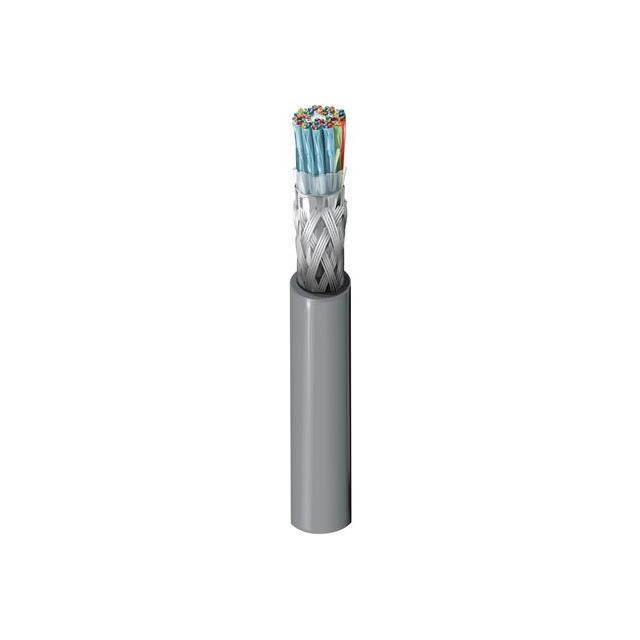

8175 060500

Active

Belden Inc.

MULTI-PAIR 30COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 30COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8175 060500

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.065 in
Jacket (Insulation) Thickness	1.651 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	30 (15 Pair Twisted)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2493
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Usage	Shield Coverage	Conductor Insulation	Number of Conductors	Wire Gauge	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Conductor Material	Ratings	Jacket Color	Cable Type	Voltage
Belden Inc. 8175 060500	Drain Wire	-40 °C	60 °C	Braid Foil	Computer	65 % 100 %	Foam Polyethylene (FPE)	30 (15 Pair Twisted)	24 AWG	Aluminum Copper Tinned	0.065 in	1.651 mm	Poly-Vinyl Chloride (PVC)	32 AWG	7	500 '	152.4 m	Copper Tinned	UL Style 2493	Chrome	Multi-Pair	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 29.77

General part information

30 (15 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
