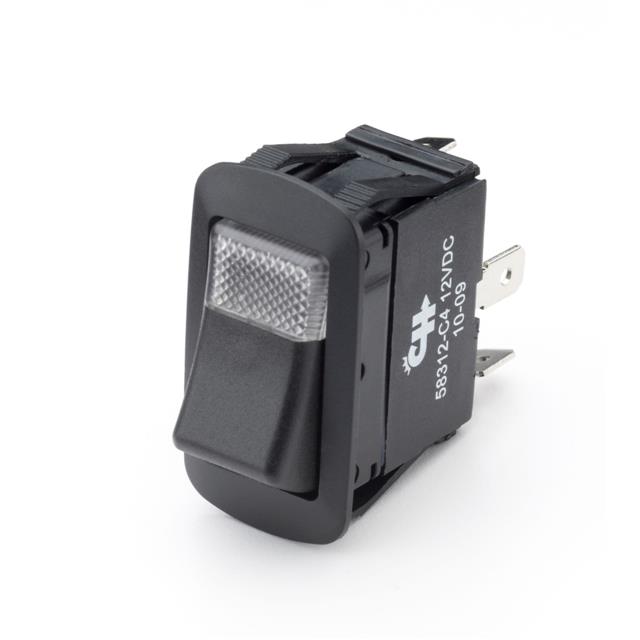

58312-C4

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 13.76

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	58312-C4	58312 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated
Circuit	SPST	SPDT, SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	25 A	25 A
Illumination Type, Color	White, LED	LED, Amber/Green, Green, Amber, White
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP66	IP66
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off	On-Off-On, On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER

Part	Illumination Type, Color	Ingress Protection	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Mounting Type	Circuit	Actuator Type	Termination Style	Illumination Voltage (Nominal)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Voltage Rating - DC
Cole Hersee 58312-AR1
Cole Hersee 58312-A1
Cole Hersee 58312-AG	Amber/Green, LED	IP66	25 A	On-Off-On	Black	Panel Mount, Snap-In	SPDT	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	12 VDC	21.08 mm	36.83 mm	No Marking	12 V
Cole Hersee 58312-G4	Green, LED	IP66	25 A	On-Off	Black	Panel Mount, Snap-In	SPST	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	12 VDC	21.08 mm	36.83 mm	No Marking	12 V
Cole Hersee 58312-A4	Amber, LED	IP66	25 A	On-Off	Black	Panel Mount, Snap-In	SPST	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	12 VDC	21.08 mm	36.83 mm	No Marking	12 V
Cole Hersee 58312-C4	LED, White	IP66	25 A	On-Off	Black	Panel Mount, Snap-In	SPST	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)	12 VDC	21.08 mm	36.83 mm	No Marking	12 V
Cole Hersee 58312-B1
