A22032-001

Active

Omnetics

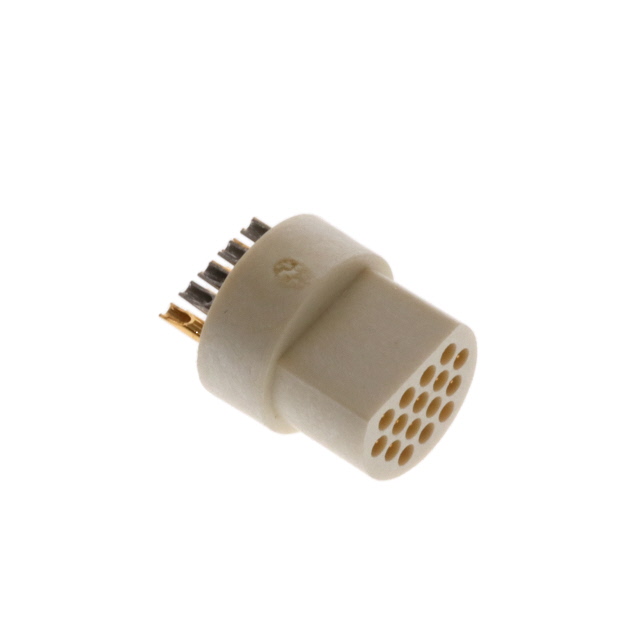

CONN PLUG MALE 16POS SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN PLUG MALE 16POS SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A22032-001	MCP-16 Series

1st Connector Gender	-	Male Pins
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	16
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	Keyed
1st Connector Type	-	Plug
2nd Connector Type	-	Wire Leads
Assembly Configuration	-	Standard
Cable Material	-	Polytetrafluoroethylene (PTFE)
Cable Type	-	Individual
Color	Natural	Multiple, Natural
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Beryllium Copper	Beryllium Copper
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	16	16
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Shielding	Unshielded	Unshielded

CIRC CBL 16POS PLUG TO WIRE 1.5'

Part	Color	1st Connector Number of Positions	Length [x]	Length [x]	Assembly Configuration	Cable Type	1st Connector Type	Cable Material	1st Connector Number of Positions Loaded	Shielding	2nd Connector Type	1st Connector Mounting Type	1st Connector Gender	1st Connector Orientation [custom]	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Mounting Type	Primary Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Orientation	Current Rating (Amps)	Contact Finish - Mating
Omnetics A22034-001	Multiple	16	457.2 mm	1.5 ft	Standard	Individual	Plug	Polytetrafluoroethylene (PTFE)	All	Unshielded	Wire Leads	Free Hanging (In-Line)	Male Pins	Keyed
Omnetics A22032-001	Natural									Unshielded					Liquid Crystal Polymer (LCP)	1.27 µm	50 µin	Beryllium Copper	Push-Pull	Free Hanging (In-Line)	Plastic	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pins, Plug	16	Keyed	3 A	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Plug, Male Pins Solder Cup
