392-035-558-102
ActiveEDAC Inc.

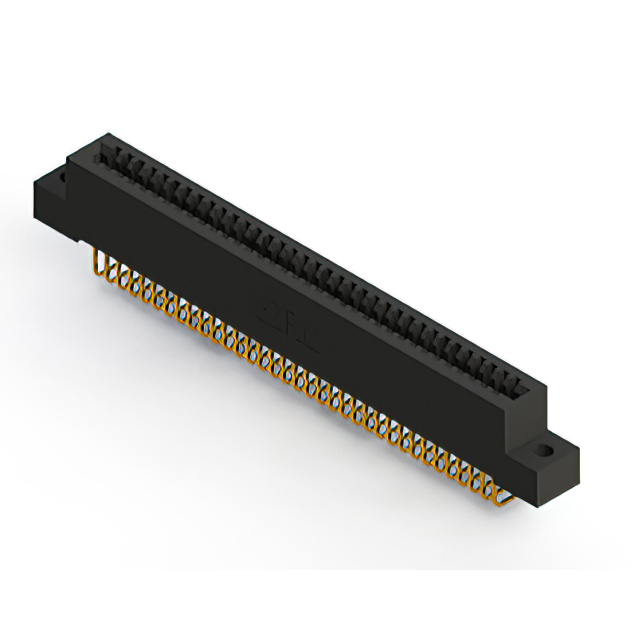

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-035-558-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-035-558-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 35 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
392-035 Series
| Part | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Material | Gender | Number of Rows | Color | Number of Positions/Bay/Row [custom] | Mounting Type | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | ||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Solder | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Wire Wrap | 2.54 mm | 0.1 in | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole Right Angle | Solder Wire Wrap | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole Right Angle | Solder Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | ||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Wire Wrap | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in |
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Single | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Gold | 35 | -40 °C | 105 ░C | Non Specified - Single Edge | Copper Alloy | Female | 1 | Black | 35 | Through Hole | Wire Wrap | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 18.10 | |
Description
General part information
392-035 Series
35 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
