ACB2012H-015-T
ObsoleteTDK Corporation

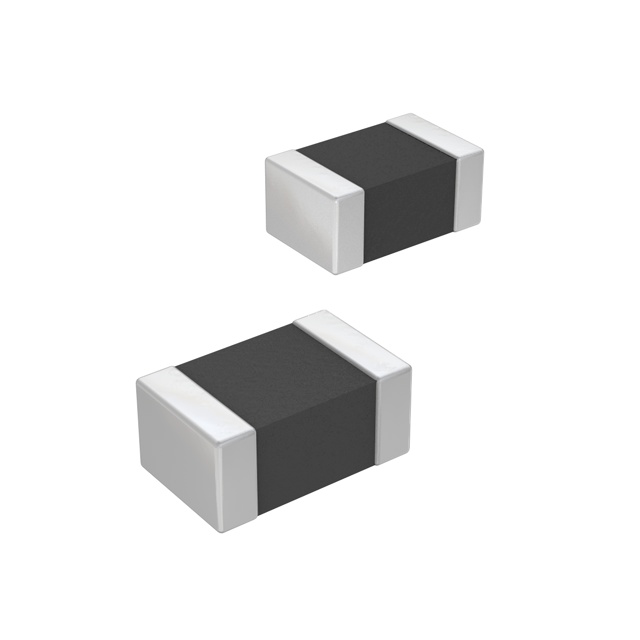

FERRITE BEAD 15 OHM 0805 1LN
ACB2012H-015-T
ObsoleteTDK Corporation
FERRITE BEAD 15 OHM 0805 1LN
Description
General part information
ACB2012H-015-T
15 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 400mA 300mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | ACB2012H-015-T |
|---|---|
| Current Rating (Max) | 400 mA |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.043 in |
| Impedance | 15 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
