MAX98050EVSYS#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX98050
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX98050EVSYS#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX98050
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX98050EVSYS# | MAX98050 Series |
|---|---|---|
| Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Data Interface | - | Serial, I2C, I2S, SPI™ |
| Embedded | False | False |
| Function | CODEC | CODEC |
| Mounting Type | - | Surface Mount |
| Number of ADCs / DACs | - | 3 |
| Number of ADCs / DACs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 36-XFBGA, WLBGA |
| Resolution (Bits) | - | 16 - 32 b |
| Sigma Delta | - | False |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 2.61 |
| Supplier Device Package | - | 36-WLP |
| Supplier Device Package | - | 2.57 |
| Type | Audio | Audio |
| Utilized IC / Part | MAX98050 | MAX98050 |
| Voltage - Supply, Analog | - | 1.3 - 1.95 V |
| Voltage - Supply, Analog | - | 1.1 - 1.71 V |
| Voltage - Supply, Digital | - | 1.3 - 1.95 V |
| Voltage - Supply, Digital | - | 1.1 - 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 358.44 | |
MAX98050 Series
MAX98050ENX+
| Part | Sigma Delta | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of ADCs / DACs [custom] | Number of ADCs / DACs [custom] | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Data Interface | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Mounting Type | Resolution (Bits) | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Type | Contents | Supplied Contents | Function | Utilized IC / Part | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX98050ENX+ | 36-XFBGA, WLBGA | 85 °C | -40 °C | 3 | 1 | 2.61 | 36-WLP | 2.57 | I2C, I2S, Serial, SPI™ | 1.3 V, 1.95 V | 1.1 V, 1.71 V | Surface Mount | 16 b, 24 b, 32 b | 1.3 V, 1.95 V | 1.1 V, 1.65 V | Audio | ||||||
Analog Devices Inc./Maxim Integrated MAX98050EVSYS# | Audio | Board(s), Cable(s) | Board(s), Cable(s) | CODEC | MAX98050 |
Description
General part information
MAX98050 Series

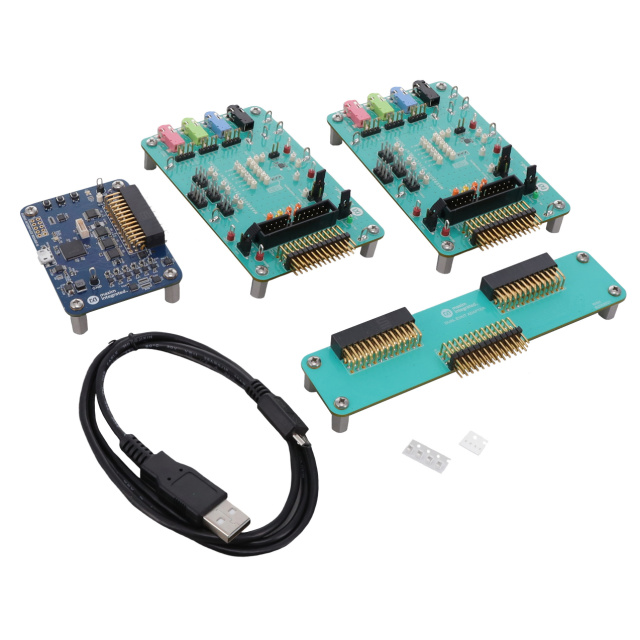

MAX98050 - CODEC Audio Evaluation Board
