DC0021/01-TG-A373F-0.25-2A
Activet-Global Technology

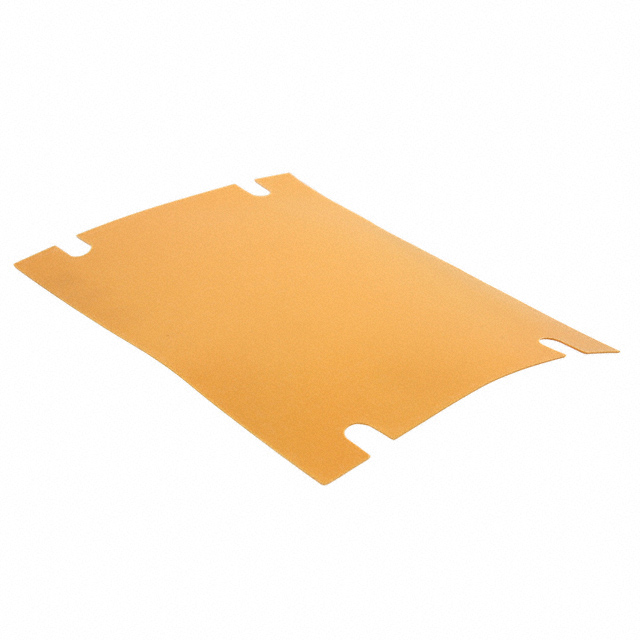

THERM PAD 104.1MMX73.7MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0021/01-TG-A373F-0.25-2A
Activet-Global Technology
THERM PAD 104.1MMX73.7MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0021/01-TG-A373F-0.25-2A | DC0021/01 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Yellow | White, Gray, Yellow |
| Material | - | Silicone |
| Outline [x] | 104.1 mm | 104.1 mm |
| Outline [y] | 73.7 mm | 73.7 mm |
| Shape | Rectangular | Rectangular |
| Shelf Life | 12 Months | 12 - 36 Months |
| Shelf Life Start | - | Date of Purchase |
| Thermal Conductivity | 1.4 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness [custom] | 0.254 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.01 in | 0.01 - 0.012 " |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | Power Module | Power Module |
DC0021/01 Series
THERM PAD 104.1MMX73.7MM W/ADH
| Part | Shelf Life | Thickness [x] | Thickness [x] | Thermal Conductivity | Usage | Color | Material | Type | Outline [x] | Outline [y] | Shape | Adhesive | Backing, Carrier | Thickness [custom] | Thickness [custom] | Shelf Life Start |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0021/01-TI900-0.12-2A | 24 Months | 0.005 in | 0.127 mm | 1.8 W/m-K | Power Module | White | Silicone | Die-Cut Pad, Sheet | 104.1 mm | 73.7 mm | Rectangular | Adhesive - Both Sides | Viscose | |||
t-Global Technology DC0021/01-TG-A486G-0.3-2A | 12 Months | 6 W/m-K | Power Module | Gray | Die-Cut Pad, Sheet | 104.1 mm | 73.7 mm | Rectangular | Adhesive - Both Sides | 0.305 mm | 0.012 " | Date of Purchase | ||||
t-Global Technology DC0021/01-TI900-0.12-0 | 36 Months | 0.005 in | 0.127 mm | 1.8 W/m-K | Power Module | White | Silicone | Die-Cut Pad, Sheet | 104.1 mm | 73.7 mm | Rectangular | Viscose | ||||
t-Global Technology DC0021/01-TG-A373F-0.25-2A | 12 Months | 1.4 W/m-K | Power Module | Yellow | Die-Cut Pad, Sheet | 104.1 mm | 73.7 mm | Rectangular | Adhesive - Both Sides | 0.254 mm | 0.01 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 10.35 | |
Description
General part information
DC0021/01 Series
Thermal Pad Yellow 104.10mm x 73.70mm Rectangular Adhesive - Both Sides
Documents
Technical documentation and resources
