9488 0101000
ActiveBelden Inc.

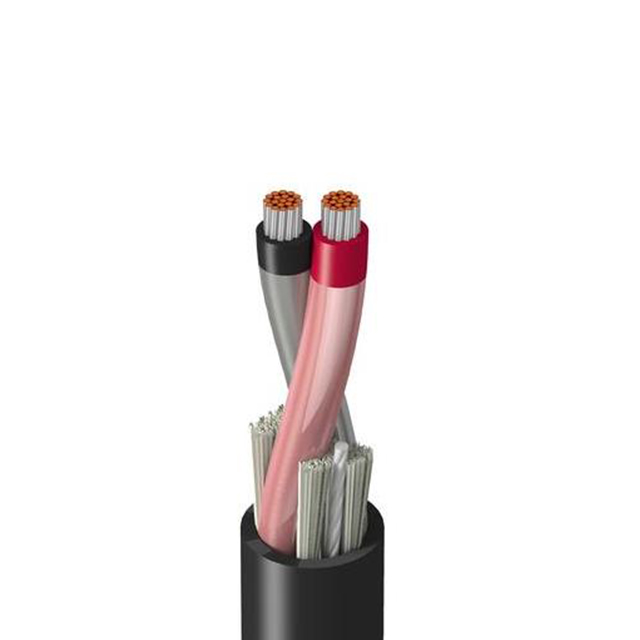

CABLE 2COND 14AWG BLACK
Deep-Dive with AI
Search across all available documentation for this part.
9488 0101000
ActiveBelden Inc.
CABLE 2COND 14AWG BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9488 0101000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 42 |
| Conductor Strand [custom] | 30 |
| Features | Ripcord, UV Resistant, Direct Burial |
| Jacket (Insulation) Diameter [diameter] | 9.12 mm |
| Jacket (Insulation) Diameter [diameter] | 0.359 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.048 in |
| Jacket (Insulation) Thickness | 1.219 mm |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | TC, UL Style NPLF |
| Usage | Instrumentation |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 5.30 | |
Description
General part information
9488 Series
2 (1 Pair) Conductor Multi-Conductor Cable Black 14 AWG 1000.0' (304.8m)
