General part information

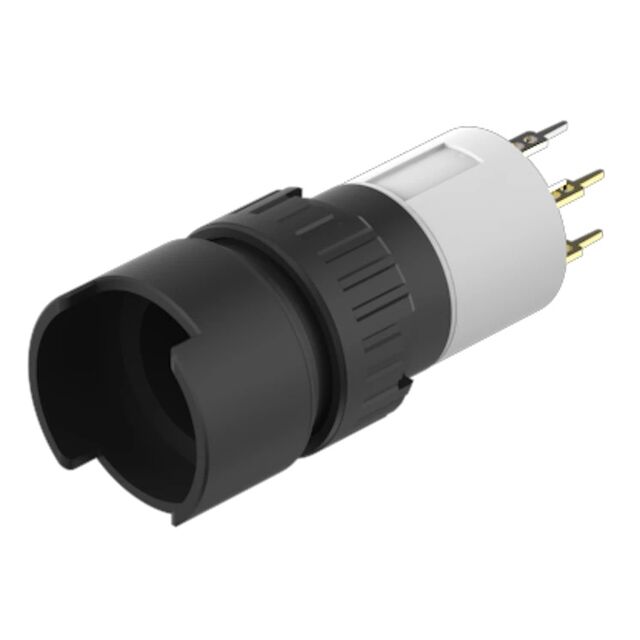

Pushbutton Switch DPST-NO Standard Panel Mount, Front
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 51-431.036 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | DPST-NO |
| Current Rating (Amps) | 100 mA |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom |
| Termination Style | PC Pin, Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
SWITCH PB DPST-NO 0.1A 42V
| Part | Circuit | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current Rating (Amps) | Mounting Type | Voltage Rating - DC | Termination Style | Mechanical Life | Actuator Type | Ingress Protection | Actuator Marking | Voltage Rating - AC | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 51-431.036 | DPST-NO | Off-Mom | 55 °C | -25 °C | Standard | 100 mA | Panel Mount, Front | 42 V | PC Pin, Solder Lug | 5000000 Cycles | Round, Button (Not Included) | IP65 - Dust Tight, Water Resistant | No Marking | 42 V | 16 mm |
