EN3P17MRAPCBW

Active

Switchcraft Inc.

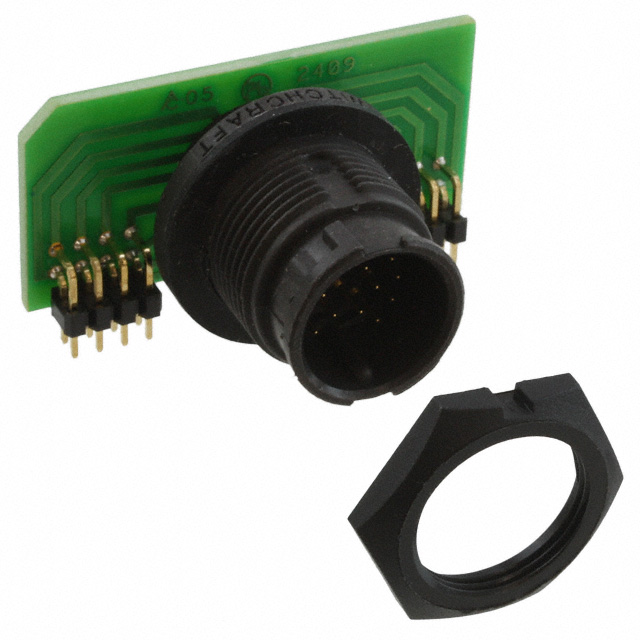

CONN RCPT MALE 17POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 17POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN3P17MRAPCBW	EN3P17 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 17POS GOLD SOLDER

Part	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Voltage Rating	Current Rating (Amps)	Termination	Insert Material	Connector Type	Contact Finish - Mating	Orientation	Material Flammability Rating	Mounting Type	Ingress Protection	Color	Primary Material	Applications	Contact Material	Shielding
Switchcraft Inc. EN3P17MRAPCBN	Bulkhead - Front Side Nut	65 °C	-40 °C	Bayonet Lock	250 VAC	2 A	Circuit Board, Solder	Elastomer	Male Pins, Receptacle	Gold	Keyed	UL94 V-0	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Plastic	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Unshielded
Switchcraft Inc. EN3P17MRAPCBW	Bulkhead - Front Side Nut	65 °C	-40 °C	Bayonet Lock	250 VAC	2 A	Circuit Board, Solder	Elastomer	Male Pins, Receptacle	Gold	Keyed	UL94 V-0	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Plastic	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Unshielded
Switchcraft Inc. EN3P17FRAPCBW	Bulkhead - Front Side Nut	65 °C	-40 °C	Bayonet Lock	250 VAC	2 A	Circuit Board, Solder	Elastomer	Receptacle, Female Sockets	Gold	Keyed	UL94 V-0	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Plastic	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Unshielded
Switchcraft Inc. EN3P17FRAPCBN	Bulkhead - Front Side Nut	65 °C	-40 °C	Bayonet Lock	250 VAC	2 A	Circuit Board, Solder	Elastomer	Receptacle, Female Sockets	Gold	Keyed	UL94 V-0	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Plastic	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Unshielded
