IL610-1ETR7

Active

NVE Corp/Sensor Products

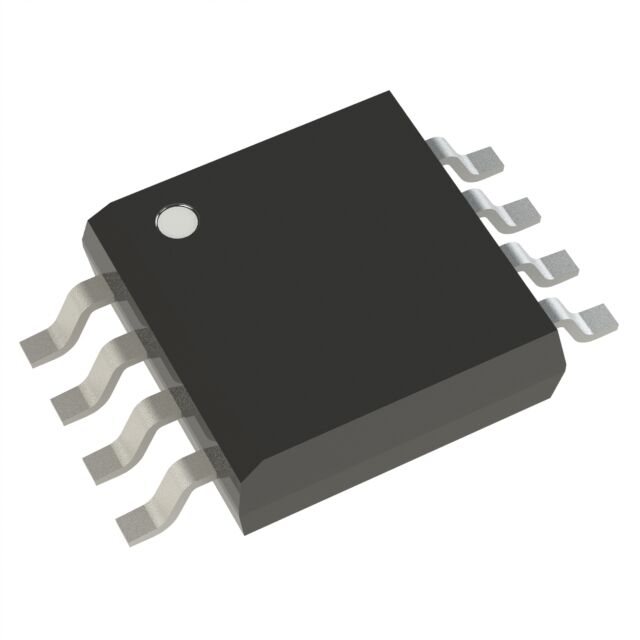

DGTL ISO 2500VRMS 1CH GP 8MSOP

Search across all available documentation for this part.

Active

NVE Corp/Sensor Products

DGTL ISO 2500VRMS 1CH GP 8MSOP

Technical Specifications

Parameters and characteristics for this part

Specification	IL610-1ETR7

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	15 kV/µs
Data Rate	100 Mbps
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Propagation Delay tpLH / tpHL (Max) [custom]	15 ns
Propagation Delay tpLH / tpHL (Max) [custom]	15 ns
Pulse Width Distortion (Max)	10 ns
Rise / Fall Time (Typ) [custom]	2 ns
Rise / Fall Time (Typ) [custom]	2 ns
Supplier Device Package	8-MSOP
Technology	GMR (Giant Magnetoresistive)
Type	CAN, RS485, SPI, RS422, RS232
Voltage - Isolation	1000 VAC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

DGTL ISO 2500VRMS 1CH GP 8MSOP

Part	Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [custom]	Package / Case	Pulse Width Distortion (Max)	Mounting Type	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Common Mode Transient Immunity (Min) [Min]	Isolated Power	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Number of Channels	Channel Type	Voltage - Isolation
NVE Corp/Sensor Products IL610-1ETR7	CAN, RS232, RS422, RS485, SPI	15 ns	15 ns	2 ns	2 ns	100 Mbps	8-MSOP	5.5 V	3 V	8-MSOP, 8-TSSOP	0.118 in	3 mm	10 ns	Surface Mount	GMR (Giant Magnetoresistive)	85 °C	-40 °C	15 kV/µs		0	1	1	Unidirectional	1000 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CAN, RS232, RS422, RS485, SPI Digital Isolator 1000Vrms 1 Channel 100Mbps 15kV/µs CMTI 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
