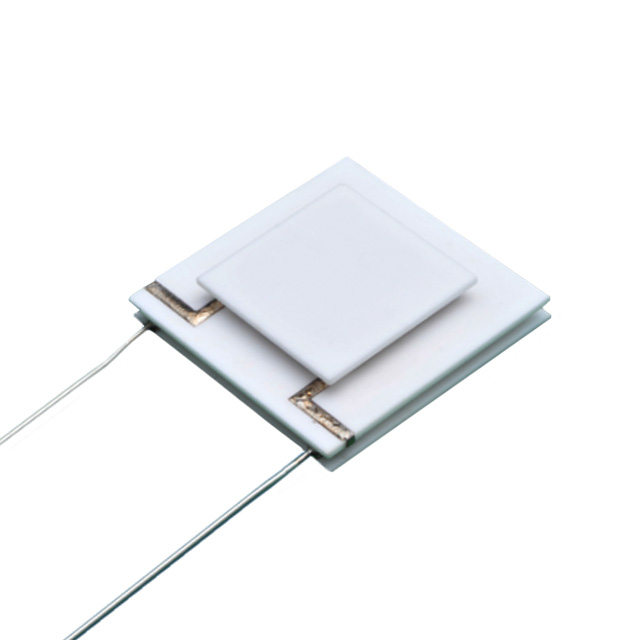

NL2063T-01AB

Active

Marlow Industries, Inc.

MULTISTAGE TEM39.64X29.64X5.94MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM39.64X29.64X5.94MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL2063T-01AB

Current - Max [Max]	4.6 A
Delta Tmax @ Th	80 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	5.94 mm
Number of Stages	2
Qmax @ Th	13.4 W
Resistance	1.65 Ohms
Size / Dimension [x]	29.64 mm
Size / Dimension [y]	29.64 mm
Voltage - Max [Max]	8.2 V

Part	Current - Max [Max]	Number of Stages	Height [z]	Features	Resistance	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Qmax @ Th
Marlow Industries, Inc. NL2063T-01AB	4.6 A	2	5.94 mm	Exterior Metallization (Both Sides) Lead Wires	1.65 Ohms	80 °C	29.64 mm	29.64 mm	8.2 V	13.4 W
Marlow Industries, Inc. NL2063T-03AB	4.6 A	2	5.94 mm	Lead Wires	1.65 Ohms	80 °C	29.64 mm	29.64 mm	8.2 V	13.4 W
Marlow Industries, Inc. NL2063T-02AB	4.6 A	2	5.94 mm	Exterior Metallization Lead Wires	1.65 Ohms	80 °C	29.64 mm	29.64 mm	8.2 V	13.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 199.75

General part information

Peltier Module 13.4W @ 27°C 4.6 A 85°C
