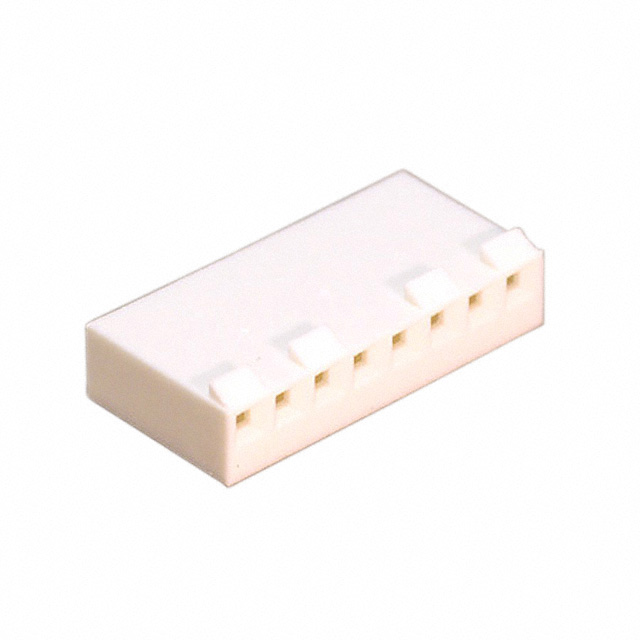

0009508081

Active

Molex

CONN RCPT HSG 8POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0009508081

Active

Molex

CONN RCPT HSG 8POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0009508081	000950 Series

	-	-
Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Non-Gendered	Non-Gendered, Female Socket
Fastening Type	Locking Ramp	Locking Ramp, Friction Lock
Features	-	Position 2 Molded Closed, Position 5 Molded Closed, Polarizing Key, Position 2, 4 Molded Closed, Position 3 Molded Closed
Insulation Material	Polyester, Glass Filled	Polyamide (PA), Nylon, Polyester, Glass Filled, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	2 - 23
Number of Positions	-	16
Number of Rows	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Pitch [x]	0.156 in	0.156 in
Pitch [x]	3.96 mm	3.96 mm

000950 Series

CONN RCPT HSG 14POS 3.96MM

Part	Note	Contact Type	Number of Rows	Mounting Type	Contact Termination	Connector Type	Insulation Material	Color	Number of Positions	Pitch [x]	Pitch [x]	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0009507141	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Nylon, Polyamide (PA)	Natural	14	0.156 in	3.96 mm
Molex 0009509043	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	4	0.156 in	3.96 mm	Position 2 Molded Closed	Locking Ramp
Molex 0009509060	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	6	0.156 in	3.96 mm	Position 5 Molded Closed	Locking Ramp
Molex 0009503091	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Nylon, Polyamide (PA)	Natural	9	0.156 in	3.96 mm		Locking Ramp
Molex 0009507071	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Nylon, Polyamide (PA)	Natural	7	0.156 in	3.96 mm
Molex 0009501091	Contacts Not Included	Female Socket	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	9	0.156 in	3.96 mm		Friction Lock	-40 °C	105 ░C
Molex 0009509063	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	6	0.156 in	3.96 mm	Position 2 Molded Closed	Locking Ramp
Molex 0009508020	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	2	0.156 in	3.96 mm
Molex 0009501033	Contacts Not Included	Female Socket	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural		0.156 in	3.96 mm	Position 2 Molded Closed	Friction Lock	-40 °C	105 ░C
Molex 0009508141	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	14	0.156 in	3.96 mm		Locking Ramp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.51
		10	$ 0.38
		25	$ 0.34
		50	$ 0.31
		100	$ 0.29
		250	$ 0.27
		500	$ 0.26

Description

General part information

000950 Series

8 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
