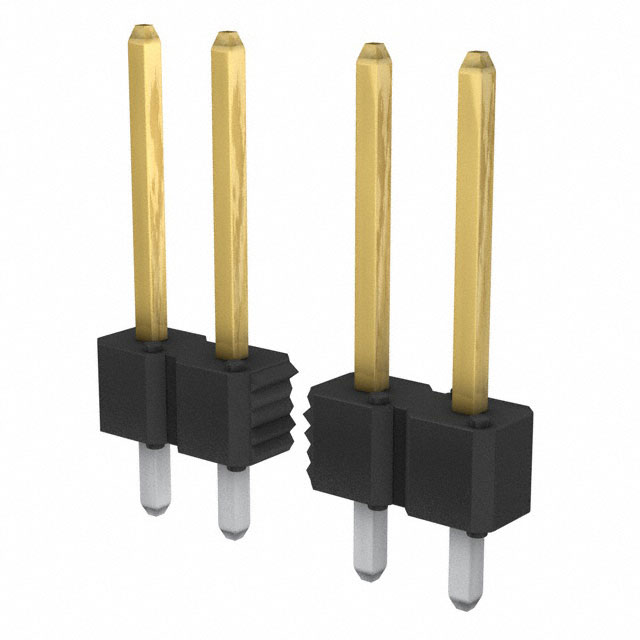

Specification	77311-815-11LF

Connector Type	Header
Contact Finish - Mating	Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	78.7 µin
Contact Length - Mating	0.335 in
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Overall Contact Length	0.535 in
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

77311 Series

...

Part	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Overall Contact Length	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Post	Insulation Color	Connector Type	Contact Type	Current Rating (Per Contact)	Contact Length - Post	Pitch - Mating	Number of Rows	Termination	Style	Contact Length - Mating	Contact Material	Shrouding	Insulation Material	Number of Positions Loaded	Contact Shape	Contact Finish - Mating
Amphenol ICC (FCI) 77311-124-24LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	30 µin	0.48 in	24 pos	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.114 in	0.1 in	1	Solder	Board	0.266 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Gold GXT™
Amphenol ICC (FCI) 77311-424-06LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	78.7 Ąin	0.48 in	6	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.114 in	0.1 in	1	Solder	Board	0.266 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Tin
Amphenol ICC (FCI) 77311-401-31LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	78.7 Ąin	0.425 in	31	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.095 in	0.1 in	1	Solder	Board	0.23 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Tin
Amphenol ICC (FCI) 77311-422-12LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	78.7 Ąin	0.525 in	12	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.12 in	0.1 in	1	Solder	Board	0.305 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Tin
Amphenol ICC (FCI) 77311-127-14LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	30 µin	0.465 in	14	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.105 in	0.1 in	1	Solder	Board	0.26 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Gold GXT™
Amphenol ICC (FCI) 77311-120-06LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	30 µin	0.825 in	6	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.12 in	0.1 in	1	Solder	Board	0.605 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Gold GXT™
Amphenol ICC (FCI) 77311-818-30LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	15 µin	0.45 in	30	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.12 in	0.1 in	1	Solder	Board	0.23 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Gold GXT™
Amphenol ICC (FCI) 77311-827-07LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	15 µin	0.465 in	7	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.105 in	0.1 in	1	Solder	Board	0.26 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Gold GXT™
Amphenol ICC (FCI) 77311-127-19	150 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	30 µin	0.465 in	19	125 °C	-65 °C	Tin-Lead	Black	Header	Male Pin	3 A	0.105 in	0.1 in	1	Solder	Board	0.26 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Gold GXT™
Amphenol ICC (FCI) 77311-402-18LF	78.7 µin	Push-Pull	0.1 in	UL94 V-0	Through Hole	78.7 Ąin	0.465 in	18	125 °C	-65 °C	Tin	Black	Header	Male Pin	3 A	0.135 in	0.1 in	1	Solder	Board	0.23 in	Phosphor Bronze	Unshrouded	Thermoplastic	All	Square	Tin
